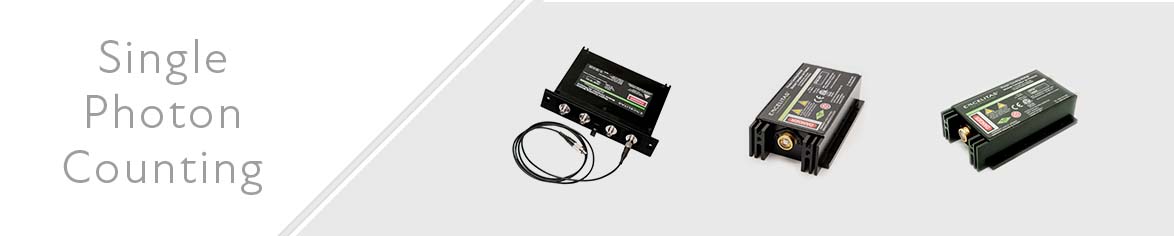

Single Photon Counting Modules from Excelitas Technologies achieve excellent performance in very low light level applications
SPCMs – Single Photon Counting Modules – detect single photons of light over the 400-1060nm wavelength range – a range and sensitivity that often outperforms a photomultiplier tube. A key strength is the peak photon detection efficiency of up to 80% @ 700nm, with selections for various wavelengths available.
The active area of 180µm is the largest on the market, with uniformity that is simply unmatched. SPCMs have extremely high single-photon detection efficiency, and are much more sensitive than the PMT in the visible range.
Single Photon Counting Modules (SPCMs) – Applications
Typical applications for these single photon detectors include LIDAR, Photon-Correlation Spectroscopy, Astronomical Observation, Optical Range Finding, Adaptive Optics, Ultra-Sensitive Fluorescence, Particle Sizing and Quantum Communication.
Excelitas SPCM-AQRH
The newly enhanced SPCM-AQRH Single-Photon Counting Module detects single photons over the wavelength range of 400 nm to 1064 nm with performance parameters superior to other solid state or vacuum-tube based photon counters.
Excelitas SPCM-NIR
The Excelitas SPCM-NIR is a Single-Photon Counting Module specifically selected and performance-optimized for the near-infrared wavelength spectrum. This NIR spectrum enhanced device is designed to support long range LiDAR, quantum communication and microscopy, as well as many other applications.
Excelitas SPCM-AQ4C
The SPCM-AQ4C is a four-channel photon counting module capable of detecting single photons of light over the wavelength range from 400 nm to 1060 nm. Each channel is independent from the others, a versatile choice for advanced engineering projects.
Excelitas SPCM-AQRH-WX-TR
The Excelitas SPCM-AQRH-WX-TR is a Single Photon Counting Module of the latest product generation, specifically selected and performance-optimized for timing resolution. This family of –TR modules is designed to support applications in time-correlated single-photon counting (TCSPC), fluorescence lifetime measurements and fluorescence lifetime imaging microscopy (FLIM).
