Digi WR21-WR31-WR44 Accessory Kits
XProduct SKU: 76002060
Accessory Kit - AC Power, Std Temperature, Int'l Plugs
Compatiblity: TransPort WR21, WR31 and TransPort WR44R Package Contains: (1) Power Supply (2) LTE Antennas (1) Ethernet Cable (1) Plug Kit for US, EU, UK, AUCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi WR31 4G LTE Cellular Router
XProduct SKU: WR31-M72A-DE1-TB
The Digi TransPort WR31 is an intelligent 4G LTE router designed for critical infrastructure and industrial applications. It provides a secure, reliable connection to industrial controllers, process automation equipment and smart grid assets on third party sites or remote locations. Softwaredefined, multi-carrier networking and global LTE and HSPA+ options make it easy to get connected. This drop-in connectivity gives operators a way to reduce downtime and service calls and also increase revenue by bringing distributed sites online faster. BENEFITS – Global HSPA+ and 4G LTE support and certification on major carrier networks around the world – Ethernet, serial I/O and Modbus bridging for connecting diverse field assets – Extremely resilient cellular connection through Digi’s patented SureLink™, VRRP+ protocol, and dual SIM slots – License-free enterprise software: VPN, firewall, logging and authentication – Digi Remote Manager provides mass configuration, device management, and troubleshooting tools – Rugged enclosure, optimized for DIN rail or shelf mounting – C1D2 and ATEX rated; NEMA TS2 temperature rated
CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
In stock
Make an Enquiry

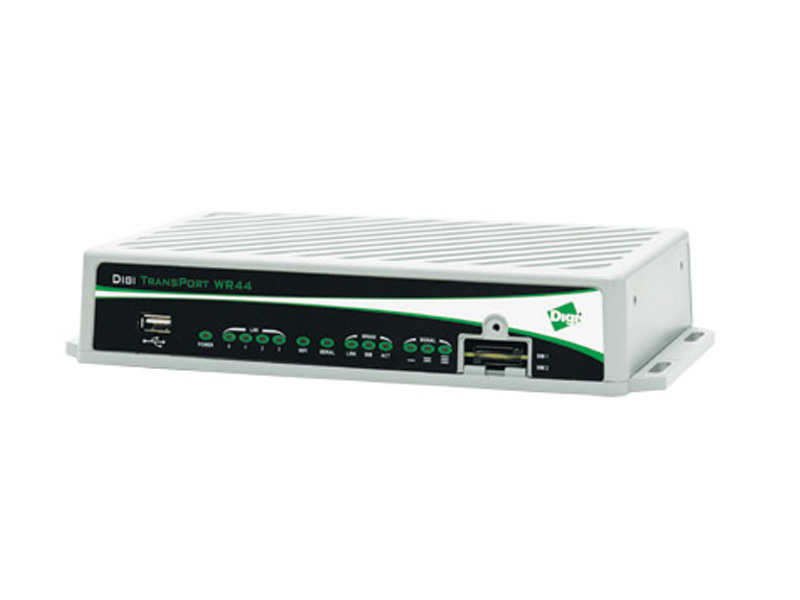

Digi WR44 4G LTE Cellular Router
XProduct SKU: WR44-L100-NE1-SW
Overview coming soon - Call 01527 830800 for information
CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an EnquiryEnquire for availability
Make an Enquiry

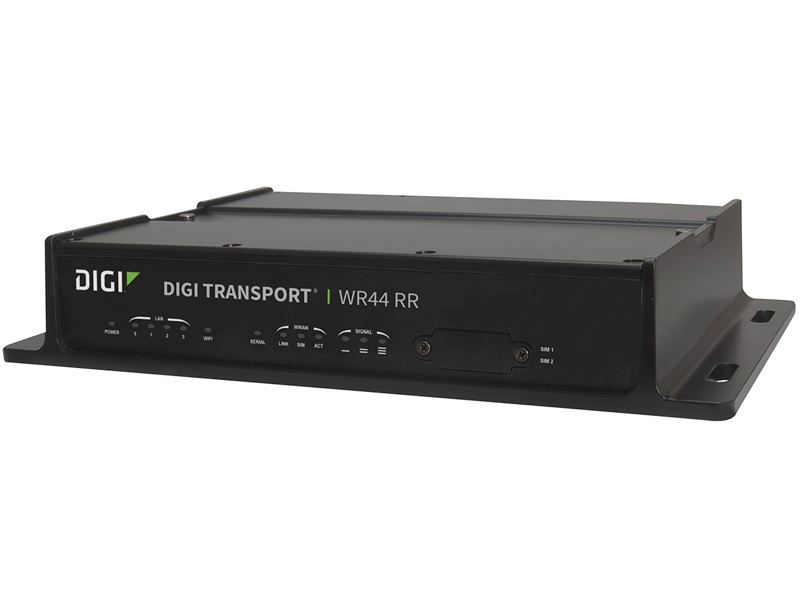

Digi WR44RR Rail Approved Cellular Router
XProduct SKU: WR44-M8G4-AE1-MD-P
Digi TransPort WR44 RR - 4G LTE North America/EMEA, Wi-Fi (802.11ac)
Rugged, all-in-one cellular router with 3G/4G GPS designed for use on-board rail vehicles Digi TransPort® WR44 RR is a rugged enterprise-class cellular router designed for rail environments. Its rail industry ratings, versatility, security features and performance make it ideal for applications such as Positive Train Control (PTC), wayside device communications and on-board passenger Internet access. Digi TransPort WR44 RR provides a reliable primary highspeed cellular network connection or can act as a secure backup connection to the existing railroad network. It features a flexible communications design with 3G/4G multicarrier cellular, plus integrated Wi-Fi ac/b/g/n; a/n access point, serial and 4-port Ethernet switch. It also features full on-board train certifications, including AAR S-9401 and EN50155. Communications interfaces include hardened connectors, including M12 for Ethernet and serial, as well as TNC connectors for antenna connections.CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry

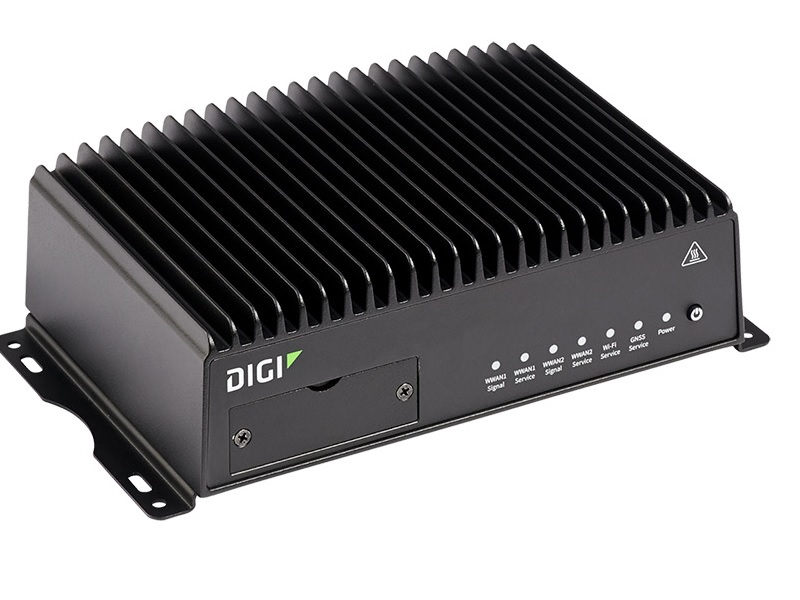

Digi WR54/WR64 Cellular Router
XProduct SKU: WR54-A106
Rugged and secure cellular router for mission critical industrial and transportation applications, including FirstNet Ready™ models for public safety networks
The versatility and performance of Digi WR54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. FirstNet Ready™ Digi WR54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.Features
- Model: Digi TransPort WR54 - Base Hardware: (4) RJ-45 Ethernet, (1) DB-9 RS-232 - Cellular Network: Single cellular module with global LTE coverage - LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B28, B29, B30, B66 - LTE TDD: B38, B40, B41 - 3G HSPA: B1, B2, B4, B5, B8 - Transfer rate (max): 600 Mbps down, 75 Mbps up (Cat 11) - Wi-Fi: Single 2x2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac - Power Connector: 3-pin Terminal Block with Ignition Sense - Accessories not included with this product: See additional accessory options belowCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi Z1201 Multifunction I/O Controller
XProduct SKU: CTK-Z1201
Digi Z1201 I/O Module
Giving you a greater degree of scalability for remote I/O control and monitoring applications
Avoid the extra cost of an additional controller and effort of maintaining multiple applications. Start with a Digi Z45 Industrial Controller and add I/O by connecting Digi Z1201 expansion modules for a solution tailored to your system.
With support for various I/O combinations — relays, digital, analog, pulse, inputs and outputs — the expandable Digi Z1201 I/O module provides monitoring and controlling for use cases requiring unique I/O combinations. On-device logic is supported from anywhere by Digi’s Z45 Industrial Controllers. Our controllers perform simple to medium complexity control logic, similar to that of a Programmable Logic Controller (PLC). Unlike a PLC, our controllers are designed for remote, distributed I/O applications in a single end-to-end solution. Data communication between Z45 Industrial Controllers and Z1201 modules is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application. Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation. The module can be daisy-chained for expansion beyond a single I/O module.Features
SPECIFICATIONS
GENERAL FEATURES - RS-485, 2-wire interface - 8 open collector outputs, 30 VDC max - 8 multi-mode inputs, 30 VDC max - Pulse counting - Analog inputs - Digital outputs INPUTS - Maximum input voltage: 30 VDC - Input logic, Low /= 4 - Sample rate: 512 Hz CONFIGURABLE I/O: DIGITAL OUTPUTS - Open collector output rating: 30 V 350 mA single output, 250 mA with all outputs on - Max update frequency: 60 Hz - Pulse width modulation: 7.8 KHz, 8-bit resolution CONFIGURABLE I/O: ANALOG INPUTS - Measurable range: 0-5 VDC - Read frequency: 20 Hz - Analog input A/D conversion: 12-bit with 10 mV CONFIGURABLE I/O: PULSE INPUTS - Max pulse width: 3 msec - Max count stored between reads: 32,767 CONTROL INTERFACE - RS-485 2-wire - Protocol: Proprietary Automation Control POWER Input: - 9-24 VDC (external source) - Consumption: 100 mA (excluding active inputs) ENVIRONMENTAL - Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F) - Humidity: 90% non-condensing MOUNTING - 35 mm DIN DIMENSIONS - 10.719 x 6.02 x 3.33 cm (4.22 x 2.37 x 1.312 in), excluding terminal block and DIN clip WEIGHT - 0.29 kg (0.63 lb), without power adapter WARRANTY - 1-year standard warrantyCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi Z45 Industrial Controller
XProduct SKU: CTK-Z4550A2M-P
Digi Z45 Industrial Controller with Cellular
The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications.
Includes Skycloud + Automation License
This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development. - Integrated interfaces for analog, digital, hex and pulse information processing - Modbus client and server configurations - Built-in digital and analog input, digital output - Networks connectivity over USB, Ethernet and serial interfaces - On-board dashboard display with gauges, indicators and charts - Self-provisioning devices report to SkyCloud for complete visibility of assets - LTE coverage on all bands for North American carriers with 3G HSPA fallback - Automatic carrier provisioning and dual-SIM failover supportFeatures
Z45 Industrial Controller
Integrated interfaces for analog, digital, hex and pulse information processingCellular technology:
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8 Multi-carrier, auto-configuration Dual-SIM (2FF) DL MIMO/Rx diversity support (1) 50 O SMA (center pin: male)Approvals:
FCC, IC, CE, PTCRB Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit www.digi.com/resources/certifications for latest cellular certificationsPosition location:
GPS, GLONASSHost interfaces:
10/100 Ethernet RJ-45 (1) RS-232 (terminal block) (1) RS-485 (terminal block) (1) Full-speed USB (Type A) (1) High-speed micro-USB OTG Input / output:
(4) User configurable, digital/analog inputs (0-5 V / 4-20 mA) (2) Digital outputs (expandable with Z1201 I/O Module)Memory:
128 MB DDR2 RAM 256 MB SLC NAND flash (1) MicroSD Slot (externally accessible)Platform:
Linux 4.xx operating system Atmel ARM9 processor Web Manager 2.0 SkyCloud services Automation applicationPower:
9-24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)Operating temperature:
-30° to 70° C (-22° to 158° F)Dimensions:
13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)Warranty:
3-year standard warrantyAvailable accessories:
Multifunction I/O Controller - CTK-Z1201S Antenna - external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123 Antenna - pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125 Antenna - multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126 Power supply - wall; US 100-240 VAC / 50-60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127 Power supply - DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85~264 VAC — 76002128 Power supply, DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100-240 VAC 50/60 hz — 76002129 Mount kit - DIN rail SKU 76002130CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Excelitas - C30902SH
XProduct SKU: C30902SH-P
Excelitas C30902SH
General Description The C30902SH is avalanche photodiode selected for low noise fabricated with a double-diffused “reach-through” structure. This structure provides high responsivity between 400 and 1000 nm as well as extremely fast rise and fall times at all wavelengths. The responsivity of the device is independent of modulation frequency up to about 800 MHz. The detector chip is hermetically-sealed behind a flat glass window in a modified TO-18 package. The useful diameter of the photosensitive surface is 0.5 mm. 0.475mm photosensitive diameter, dead time filter 20ns, photon detection efficiency >70% at 700nm Applications Single molecule detection High throughput single photon experiments LIDAR Photon correlation spectroscopy Astronomical observation Optical range finding Adaptive optics Ultra sensitive fluorescence Particle sizingCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Excelitas - Dual-Element Pyrodetectors
XProduct SKU: PYD1388/7083-P
This Pyrodetector Series represents Excelitas standard analog Pyrodetector offering. Our PYD 1388 (replacement to LHi 878) and PYD 1398 (replacement to LHi 968) Dual-Element Pyrodetectors feature two elements configured in a series connection with an FET in source-follower circuit. They are integrated into a robust TO-5 Metal Housing with an optical window
Features
- TO-5 metal housing for EMI shielding - High responsivity ceramic pyroelectric elements - Dual detector with 2 × 1 mm2 elements - 95°/100° field-of-view - Integrated FET in source follower configuration - Integrated EMI filtering stageSpecifications
- Responsivity: 4.2 kV/W (typical) - Noise: 20µVpp (typical) / 50µVpp (max) - Operation requirements: 2.0-10V - Housing with optical window: TO-5 - PYD 1388 Field-of-View (horiz/vert): 95°/87° - PYD 1398 Field-of-View (horiz/vert): 100°/100° - PYD 1388 with 1 EMI filtering stage - PYD 1398 with 2 EMI filtering stagesCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Excelitas - Gas Detectors
XProduct SKU: PYS 3228 TC G1/G20-3641-P
Single-Element Pyroelectric Detectors are often applied for temperature and gas measuring applications in one-channel or dual-channel variants, which is then one output per element. Single-Element variants are offered as thermally compensated devices. The principle of Gas monitor application is called NDIR. NDIR requires Detectors with narrow-band optical filters. Excelitas provides a range of suited filter windows for those gases which show an absoption band in the IR spectral range.
CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Excelitas - NIR Single-Photon Counting Module SPCM NIR
XProduct SKU: SPCM-NIR-10-FC
NIR-Optimized Single Photon Counting Module Excelitas Technologies’ SPCM-NIR is a Single Photon Counting Module specifically selected and performance-optimized for the near infra-red wavelength spectrum. The SPCM-NIR uses a specially selected SLiK silicon avalanche photodiode with peak single photon detection efficiency typically better than 73% while maintaining uniformity over a 180µm diameter active area. This module achieves enhanced red and NIR sensitivity while maintaining such other performance parameters of the standard SPCM-AQRH, such as outstanding uniformity, overload protection, temperature stability and linearity. This NIR spectrum enhanced device is designed to support long range LIDAR, quantum communication and microscopy, as well as many other applications. Excelitas’ series of photon counting modules are designed and built to be fully compliant with the European Union Directive 2015/863/EU – Restriction of Hazardous Substances in Electrical and Electronic equipment (RoHS). Applications * LIDAR * Quantum Cryptography * Photon correlation spectroscopy * Astronomical observation * Optical range finding * Adaptive optics * Ultra-sensitive fluorescence * Particle sizing * Microscopy and imaging
Features
* Peak photon detection efficiency (PDE) @ 780nm: 70% typical * Active area: 180 µm * Gated output * Single +5 V supply * RoHS-compliant * Linearity over high count rateCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Excelitas - Single-Output Quad Pyros
XProduct SKU: PYQ1348/3596-P
PYQ 1398, PYQ 1348 Single-Output Quad Pyros Excelitas' PYQ 1348 and PYQ 1398 Pyrodetectors provide four sensing elements in a geometric square placement. Electrically all elements are connected in series, forming one analog output signal. The two versions vary from each other by different window size and element spacings. This "Quad" Pyrodetector Series provides all four elements connected to one common output. All elements are electrically connected to one FET in source follower connection forming one analog output signal. Two different window options are provided: Rectangular window or square window size. Different geometrical placements are available on request. When being applied with suitable lens or mirror optics these detectors are used in ceiling mount devices. The PYQ 1348 is also available with smaller elements of 0.8x0.8 mm². Small elements are suitable for compact lenses and short detection distances.
Features
- TO-5 metal housing for EMI shielding - High-responsivity ceramic pyroelectric elements - Quad detector with 1 × 1 mm² (0.8 x 0.8 mm²) elements - 124° (140°) Field-of-view (PYQ 1348) - 103° Field-of-view (PYQ 1398) - Integrated FET in source follower configuration - Integrated EMI filtering stage Applications Mid (short)-distance motion detection (with lens) Energy saving applications Intrusion alarms Ceiling mounted applicationsSpecifications
- Responsivity: 6.5 (10.2) kV/W (typical) - Noise: 40 (60) µVpp (typical) / 100 (200) µVpp (max) - Operation requirements 2.0 -10 V - Housing with optical window: TO-5 - PYQ 1398 Field-of-view (horiz/vert): 103°/100° - PYQ 1348 Field-of-view (horiz/vert): 124°/124° (140°/140°)CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Excelitas C30659 Series - 900/1060/1550/1550E
XProduct SKU: C30659-1550E-R2AH-P
Excelitas C30659 Series - 900/1060/1550/1550E
Si and InGaAs APD Preamplifier Modules Excelitas Technologies’ C30659 Series includes a Si or InGaAs Avalanche Photodiode (APD) with a hybrid preamplifier, in the same hermetically-sealed TO-8 package, to allow for ultra-low noise operation. The Si APDs used in these devices are the same as used in Excelitas’ C30817EH, C30902EH, C30954EH and C30956EH products, while the InGaAs APDs are used in the C30645EH and C30662EH products. These detectors provide very good response between 830 and 1550 nm and very fast rise- and fall-times at all wavelengths. The preamplifier section of the module uses a very low noise GaAs FET front end designed to operate at higher transimpedance than Excelitas’ regular C30950 Series. Excelitas’ InGaAs C30659-1550E Preamplifier Modules, with 1550 nm peak response, are designed to exhibit higher damage thresholds, thus providing greater resilience when exposed to high optical power densities. Customization of the C30659 Series of APD Preamplifier Modules is available to meet your specific design challenges; modifications include bandwidth and gain optimization, use of different APDs, FC-connectorized packaging. Applications - LIDAR - Range finding - Laser designation - Confocal microscopy - High-speed, extreme low-light detection - Distributed temperature sensing (DTS) - Analytical instrumentation - High-speed, free-space optical communicationFeatures
- System bandwidths of 50 and 200MHz - Ultra low noise equivalent power (NEP) - Spectral response range: o With Si APD: 400 to 1100 nm o With InGaAs APD: 1100 to 1700 nm - Typical power consumption: 150 mW - ±5 V amplifier operating voltages - 50 ? AC load capability (AC-Coupled) - Hermetically-sealed TO-8 package - High reliability - Fast overload recovery - Pin-to-pin compatible with the C30950 - Light entry angle, over 130° - Model 1550E exhibits enhanced damage threshold - RoHS-compliantCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Excelitas Single Photon Counting Module SPCM-AQ4C
XProduct SKU: SPCM-AQ4C-P
Excelitas SPCM-AQ4C
General Description The SPCM-AQ4C is a four-channel photon counting module capable of detecting single photons of light over the wavelength range from 400 nm to 1060 nm. Each channel is independent from the others. Single Photon Counting Module 4 Channel Array The SPCM-AQ4C uses a unique silicon avalanche photodiode (SLiK) that has a circular active area of 180 µm diameter with a peak photon detection efficiency exceeding 60% at 650 nm. Each photodiode is both thermoelectrically cooled and temperature controlled, ensuring stabilized performance despite changes in the ambient temperature. The SPCM-AQ4C module uses an improved circuit with a peak count rate >4M c/s for short bursts of time on all four channels and a count rate of 1.5 M c/s for continuous operation. There is a "dead time" of 50 nanoseconds (ns) between pulses. The module requires +2 Volts, +5 Volt, and +30 Volt power supplies. The output of each channel – a TTL pulse that is 4.5 Volts high (into a 50 O load) and 25 ns wide – is available at the card edge behind the circuit board. Each TTL pulse corresponds to a detected photon. All input and output signals are available at the card connector. Applications Single molecule detection High throughput single photon experiments LIDAR Photon correlation spectroscopy Astronomical observation Optical range finding Adaptive optics Ultra sensitive fluorescence Particle sizingFeatures
Peak photon detection efficiency at 650 nm: 60% typical Afterpulsing probability 0.5% Gated input TTL output FC fiber connector mounted and aligned on each detector Four channels in one package Self-contained APD module with integrated electronics ROHS compliantCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Excelitas Single Photon Counting Module SPCM-AQRH Series
XProduct SKU: SPCM-AQRH-12-FC-P
Excelitas SPCM-AQRH Series
Excelitas newly enhanced SPCM-AQRH Single-Photon Counting Module detects single photons over the wavelength range of 400 nm to 1064 nm with performance parameters superior to other solid state or vacuum-tube based photon counters. Single Photon Counting Module The SPCM-AQRH uses a unique silicon avalanche photodiode (SLiK) with a circular active area, achieving peak photon detection efficiency greater than 70% at 650 nm over a 180 µm diameter, with unmatched uniformity over the full active area. A TTL-level pulse is generated for each photon detected and the signal is available at the BNC connector at the rear of the module. The photodiode is both thermoelectrically cooled and temperature controlled, ensuring stabilized performance despite ambient temperature changes. Operating temperature range has been increased and the module will function with case temperatures between 5°C and 70°C. The module comes as standard with a free-space window to the APD, with FC fiber adapter, C-mount or tube cage mount bracket/adapter options. Recent electronic circuit enhancements have reduced the minimum dead time to less than 25 ns, thereby increasing linearity and improving the dynamic range of the module. Timing resolution of the module was also improved significantly. The SPCM-AQRH has internal protection circuitry that protects the avalanche photodiode and the module electronics from damage due to accidental overload from exposure to ambient lighting. Applications - LIDAR - Quantum Cryptography - Photon correlation spectroscopy - Astronomical observation - Optical range finding - Adaptive optics - Ultra-sensitive fluorescence - Particle sizing - MicroscopyFeatures
- Peak PDE: > 70% @ 650nm - 180µm active area - > 35 Mcps dynamic range - Gated output - Single +5 V supply - RoHS-compliant - Low after pulse probability - High uniformity over large active area - Unmatched linearity - Free space window, FC fiber adaptor, C-mount bracket, Tube cage mount bracket optionsSpecifications
| STANDARD SPCM-AQRH-WX OPTION TABLE (ADD -FC FOR REGULAR FC VERSION) | ||||||||||||
| Model | Output Pulse Options | X - Maximum Dark Count Rates (cps) | Optical Mounting Bracket (Non FC Module only) |
|||||||||
| SPCM-AQRH-WX (-FC)(-BR_) | Output Pulse Width (ns) | Dead Time (ns) | Output Pulse Height (V) | -W0 | -W1 | -W2 | -W3 | -W4 | -W5 | -W6 | -BR1 | -BR2 |
| SPCM-AQRH-1X | 10 | 24 | 2.2 | 1500 | 1000 | 500 | 250 | 100 | 50 | 25 | SM1 | C-MOUNT |
| SPCM-AQRH-2X | 18 | 28 | 2.2 | 1500 | 1000 | 500 | 250 | 100 | 50 | 25 | SM1 | C-MOUNT |
| SPCM-AQRH-3X | 28 | 35 | 2.2 | 1500 | 1000 | 500 | 250 | 100 | 50 | 25 | SM1 | C-MOUNT |
| SPCM-AQRH-4X | 10 | 24 | 4.4 | 1500 | 1000 | 500 | 250 | 100 | 50 | 25 | SM1 | C-MOUNT |
| SPCM-AQRH-5X | 18 | 28 | 4.4 | 1500 | 1000 | 500 | 250 | 100 | 50 | 25 | SM1 | C-MOUNT |
| SPCM-AQRH-6X | 28 | 42 | 4.4 | 1500 | 1000 | 500 | 250 | 100 | 50 | 25 | SM1 | C-MOUNT |
CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
EXCELITAS SPCM-780-12-FC SPCM
XProduct SKU: SPCM-780-12-FC
The Excelitas SPCM-NIR is a Single-Photon Counting Module specifically selected and performance-optimized for the near infra-red wavelength spectrum. This NIR spectrum enhanced device is designed to support long range LiDAR, quantum communication and microscopy, as well as many other applications.
