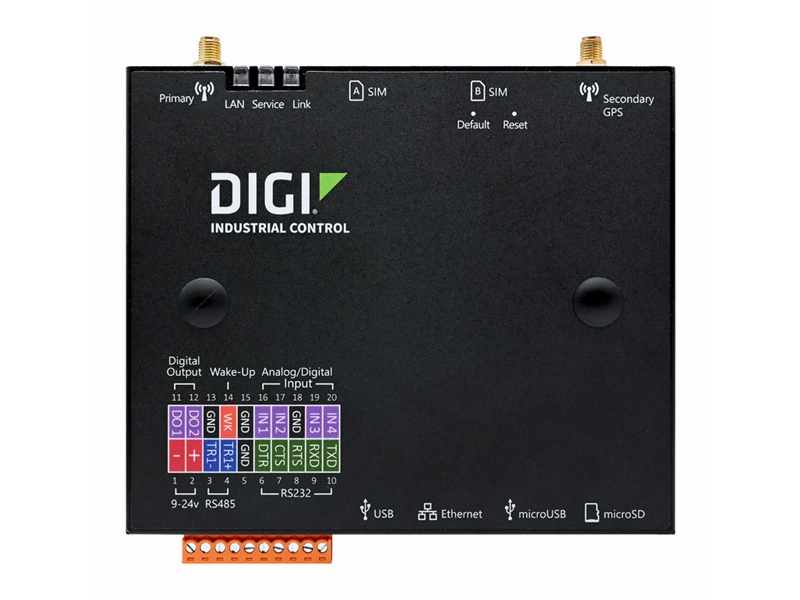

Digi Z45 Industrial Controller with Cellular
The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications.
Includes Skycloud + Automation License
This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development.
– Integrated interfaces for analog, digital, hex and pulse information processing
– Modbus client and server configurations
– Built-in digital and analog input, digital output
– Networks connectivity over USB, Ethernet and serial interfaces
– On-board dashboard display with gauges, indicators and charts
– Self-provisioning devices report to SkyCloud for complete visibility of assets
– LTE coverage on all bands for North American carriers with 3G HSPA fallback
– Automatic carrier provisioning and dual-SIM failover support
Features
Z45 Industrial Controller
Integrated interfaces for analog, digital, hex and pulse information processing
Cellular technology:
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8
Multi-carrier, auto-configuration
Dual-SIM (2FF)
DL MIMO/Rx diversity support
(1) 50 O SMA (center pin: male)
Approvals:
FCC, IC, CE, PTCRB
Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit www.digi.com/resources/certifications for latest cellular certifications
Position location:
GPS, GLONASS

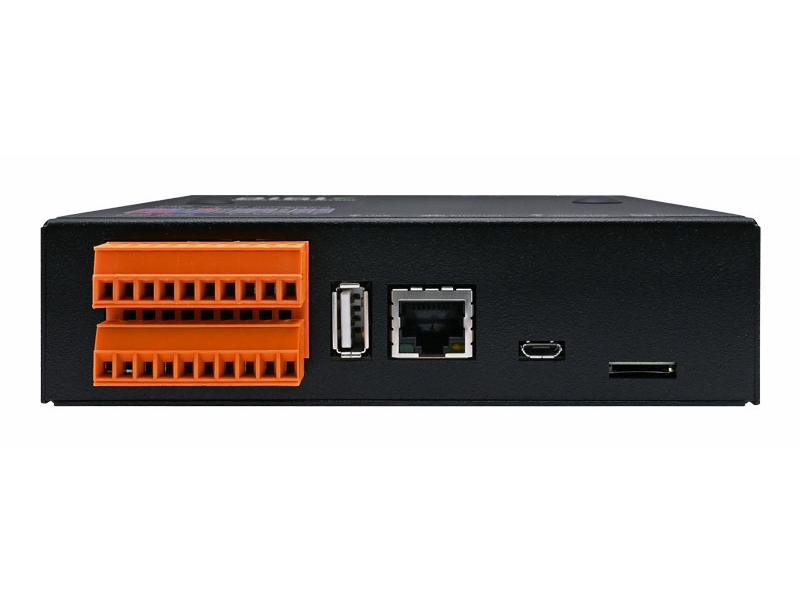

Host interfaces:
10/100 Ethernet RJ-45
(1) RS-232 (terminal block)
(1) RS-485 (terminal block)
(1) Full-speed USB (Type A)
(1) High-speed micro-USB OTG
I
nput / output:
(4) User configurable, digital/analog inputs (0-5 V / 4-20 mA)
(2) Digital outputs (expandable with Z1201 I/O Module)
Memory:
128 MB DDR2 RAM
256 MB SLC NAND flash
(1) MicroSD Slot (externally accessible)
Platform:
Linux 4.xx operating system
Atmel ARM9 processor
Web Manager 2.0
SkyCloud services
Automation application
Power:
9-24 VDC input, 190 mA consumption (typical – Ethernet not connected, varies with signal level)
Operating temperature:
-30° to 70° C (-22° to 158° F)
Dimensions:
13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)
Warranty:
3-year standard warranty
Available accessories:
Multifunction I/O Controller – CTK-Z1201S
Antenna – external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123
Antenna – pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125
Antenna – multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126
Power supply – wall; US 100-240 VAC / 50-60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127
Power supply – DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85~264 VAC — 76002128
Power supply, DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100-240 VAC 50/60 hz — 76002129
Mount kit – DIN rail SKU 76002130
