Product Overview

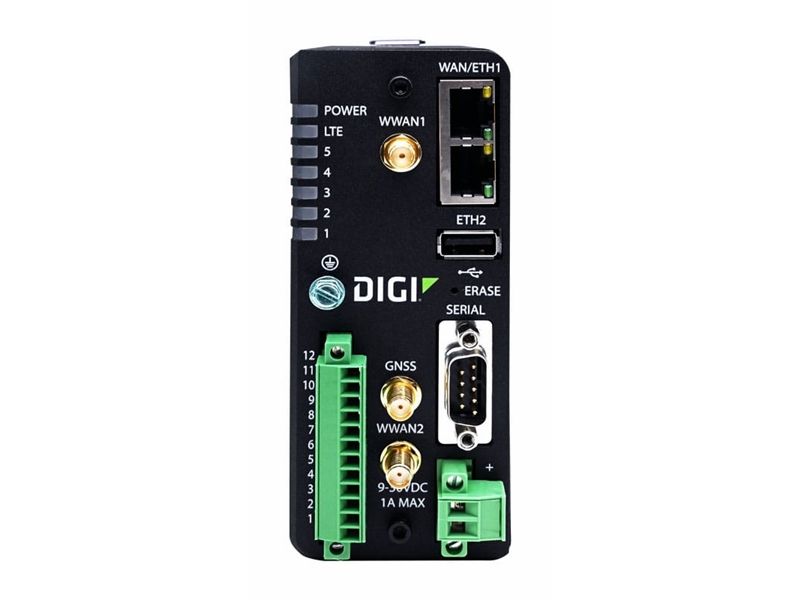

Digi IX30 – LTE Cat 4 Global, 3G/2G fallback, dual Ethernet, RS-232/422/485, GNSS
Intelligent 4G router designed for critical infrastructure and industrial applications
Digi IX30 is an intelligent 4G LTE router designed for optimal performance and reliability across a wide range of critical infrastructure and industrial applications. This complete solution is fully integrated with software and security, providing a secure, reliable connection to industrial controllers, process automation equipment and smart grid assets on third party sites or remote locations.
Software-defined, multi-carrier networking and global LTE and HSPA+ options make it easy to get connected. This drop-in connectivity gives operators a way to reduce downtime and service calls, and also increase revenue by bringing distributed sites online faster.
The Digi IX30 router offers FirstNet Capable™ models designed to meet the demands of first responders for critical communications. Additional industrial use case applications include building and process automation controllers, IP cameras and access controllers, remote data loggers, flow meters, sensing equipment, telco infrastructure, and traffic and obstruction lighting.
Gain critical insights into your deployed devices and manage your network with Digi Remote Manager (Digi RM) — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and visibility into the health of your network, whether you deploy dozens or thousands of devices.
In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.
Features
Cellular connectivity:
LTE Cat 4 Global
– LTE Cat 4 – FDD: B1, B2, B3, B4, B5, B7, B12, B13, B18, B19, B20, B25, B26, B28; TDD: B38, B39, B40, B41;
– WCDMA: B1, B2, B4, B5, B6, B8, B19;
– GSM: B2, B3, B5, B8;
– GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
– Connectors: (3) 50 O SMA (2x cellular, 1x GNSS); center pin: female
– SIM slots: (2) Mini-SIM (2FF)
– SIM security: Secured in cellular module
– GNSS: Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%);
– Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s
Software and management:
– Remote management: Digi Remote Manager®, SNMP v1/v2c/v3 (user installed/managed), SMS
– Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH, Serial)
– Management / troubleshooting tools: FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP
Ethernet:
– Ports: (2) RJ-45; 10/100 Mbps (auto-sensing)
Serial:
– (1) DB-9 DTE
– RS-232/422/285
– Signal support: TXD, RXD, CTS, DTR, DCD, DSR, RI
– Flow control: software (XON/OFF), hardware supported
I/O:
– Connector: 12-pin screw down terminal block
– Digital: 0-30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input
– Analog: (4) analog I/O; 4-20 mA or 0-10 V, software-selectable; 12-bit resolution
USB:
– Ports: (1) USB 2.0 Type A; 5 V 500 mA max
Physical:
– Dimensions (L x W x H): 12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in)
– Weight: 0.5 kg (1.1 lb)
– Status LEDs: Signal Strength (5), LTE, Power
– Enclosure/Rating: Aluminum / IP30
– Mounting: DIN rail mount
Power requirements:
– Power input: 9 – 30 VDC, 18 W min power source required
– Power connector: Screw down removable terminal block
– Power consumption: W typical (idle); 12 W typical (peak Tx/Rx)
– Environmental:
– Hazardous (Class 1 Div 2): Yes
– Operating temperature: -34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F)
– Storage temperature: -40° C to 85° C (-40° F to 185° F)
– Ethernet isolation: 1.5 kV RMS
– Serial port protection (ESD): 15 kV
– Relative humidity: 5% to 95% (non-condensing)
Approvals:
– Cellular (IX30-00G4): CE, RED, UKCA; visit www.digi.com/resources/certifications for latest cellular certifications
– Safety: Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15; Ordinary locations: UL 62368-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition; ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc; EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1
– IECEX standards: US/UL/ExTR17.0077/00
– Emissions / Immunity: CE, RED, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 322
– Environmental: RoHS3
Product warranty: 3-year*
Available accessories: Accessories not included; view available accessories

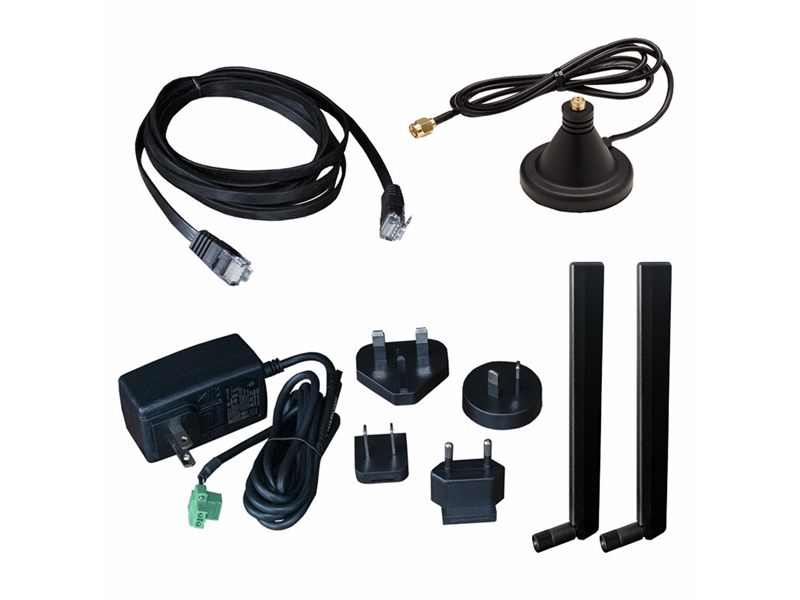

– IX30 Accessory Kit – PSU, antennas, Cat 6 Ethernet cable, GPS antenna: 76002113 (recommended)
– Power supply (required, choose industrial extended temperature or commercial)
– Power supply – 18 VDC, 1 A, wall mount level VI, industrial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002104
– Power supply – 18 VDC, 1 A, wall mount level VI, commercial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002117
– Antenna – 5G/LTE 600 MHz – 6 GHz, swivel, black: 76002114 (recommended / optional)
– Antenna base – SMA, 1 m, RG174: 76000954 (recommended / optional)
– Cable – UTP, Cat 6, 2 m (6 ft), black, flat patch cable: 76002106 (recommended / optional)
