Product Overview

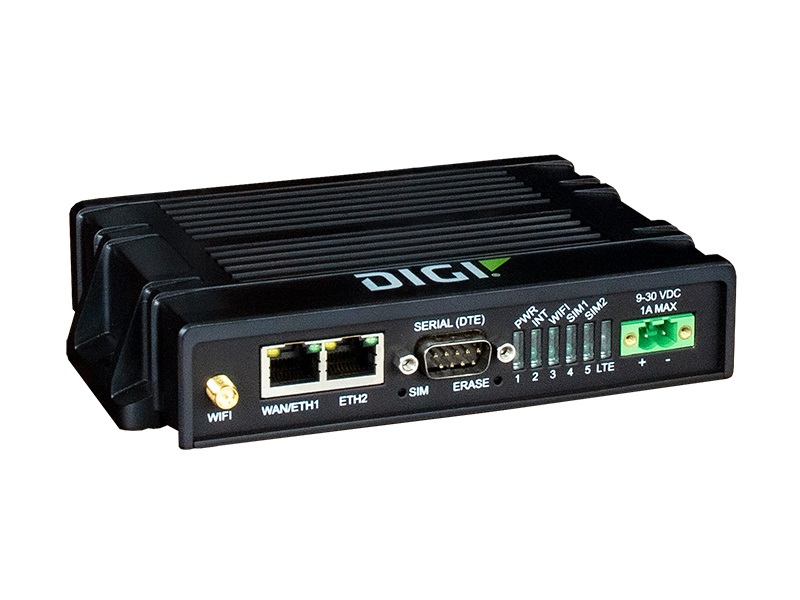

Digi IX20 Industrial Cellular Router
The Digi IX20 is a cloud managed cellular router that provides primary and backup WWAN connectivity over software selectable multi-carrier LTE.
It offers advanced security features, dual SIM redundancy and management capabilities that make it suitable for PCI or NERC-CIP compliant applications. It is a versatile and purpose-built for industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions.
The Digi IX20 can be managed with Digi Remote Manager® – a web-based device management platform that allows easy setup, mass configuration and maintenance for thousands of remote devices.
Features
– Compact and economical cellular routing platform with industrial feature set
– Redundant connectivity with dual SIMs and Digi SureLink®
– Global bands and single part number to simplify global distribution, deployment and management
– Built-in Digi TrustFence® for device security, device identity and data privacy
– Digi Remote Manager® software for easy setup, mass configuration and management
– Dual Ethernet ports and single serial (RS-232) port
Specifications
CERTIFICATIONS – Visit https://www.digi.com/resources/certifications for latest certifications

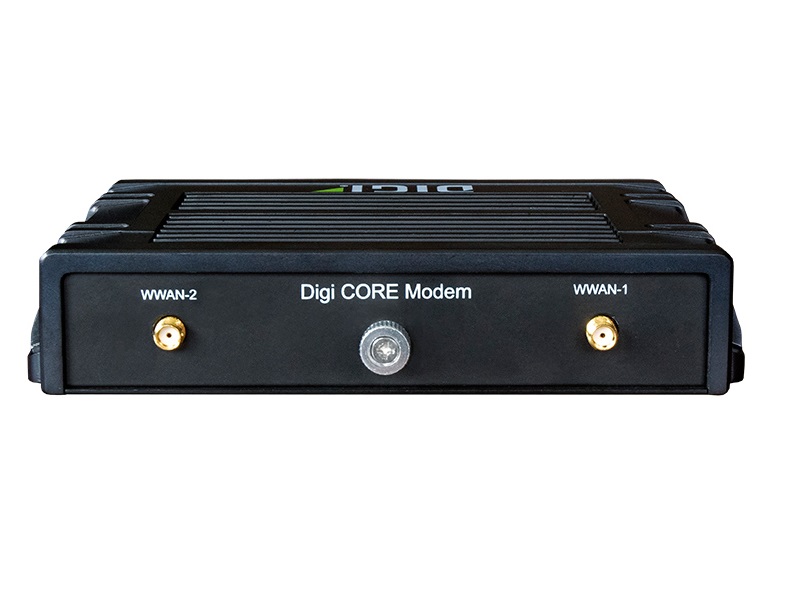

LTE (G4) WITH DIGI CORE® PLUG-IN LTE MODEM 1002-CMG4 LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz
CONNECTORS (2) 50 O SMA (center pin: female)
SIM SLOTS (2) Mini-SIM (2FF)
SIM SECURITY Secured in cellular module WI-FI MODULE 1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz)
AUTHENTICATION TACACS+, Enterprise RADIUS
MODES Client mode and access point mode simultaneously
CLIENTS Maximum 10 clients (access point mode: regardless of combination of clients and access points)
ACCESS POINTS Maximum 2 access points (access point mode: regardless of combination of clients and access points)
SECURITY WPA/WPA-2 personal, WPA/WPA-2 enterprise
CONNECTORS (1) 50 O SMA (center pin: male)
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager;
SNMP v2/v3 (user installed/managed)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH)
MANAGEMENT / TROUBLESHOOTING TOOLS FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, DynamicDNS, Ping, Traceroute
MEMORY 256 MB RAM, 256 MB flash
ETHERNET PORTS (2) RJ-45; 10/100 Mbps (auto-sensing)
SERIAL PORTS (1) DB9M; RS-232 DTE; Signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS)
PHYSICAL DIMENSIONS (L x W x H) 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in)
WEIGHT 0.65 kg (1.4 lb)
STATUS LEDs Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE
ENCLOSURE Glass-filled polyphenylene sulphide (PPS) / IP30
POWER REQUIREMENTS
POWER INPUT 9 – 30 VDC, 1.0 A maximum
POWER CONSUMPTION 2.5 W typical (idle); 6 W typical (peak Tx/Rx)
ENVIRONMENTAL
OPERATING TEMPERATURE Models with Wi-Fi: -20° C to 70° C (-4° F to 158° F); device performance may be impacted above 50° C (122° F)
Models without Wi-Fi: -40° C to 70° C (-40° F to 158° F); device performance may be impacted above 50° C (122° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS CELLULAR Visit https://www.digi.com/resources/certifications for latest cellular certifications
SAFETY IEC62368-1, CB, EN62311
ENVIRONMENTAL ROHS3
MISSIONS / IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES-3(B)/NMB-3(B)
PRODUCT WARRANTY 3-years
