Digi AnywhereUSB Plus

Product Overview

Connect USB peripheral devices anywhere on a Local Area Network (LAN) without a locally-attached host computer

A network USB hub is a USB-over-IP device that connects USB assets such as printers, scanners, and POS devices, without requiring the host computer to be in close proximity. Network USB hubs allow computers to be centralized, virtualized, positioned in racks, or placed in lower traffic locations, which improves data security, streamlines configuration, testing and management, and reduces the amount of equipment in a work area.

Features

Network-attached USB hubs easily connect USB peripheral devices to a PC from remote or virtual hosts

Ideal for connecting USB devices over the network in virtualized environments such as VMware®

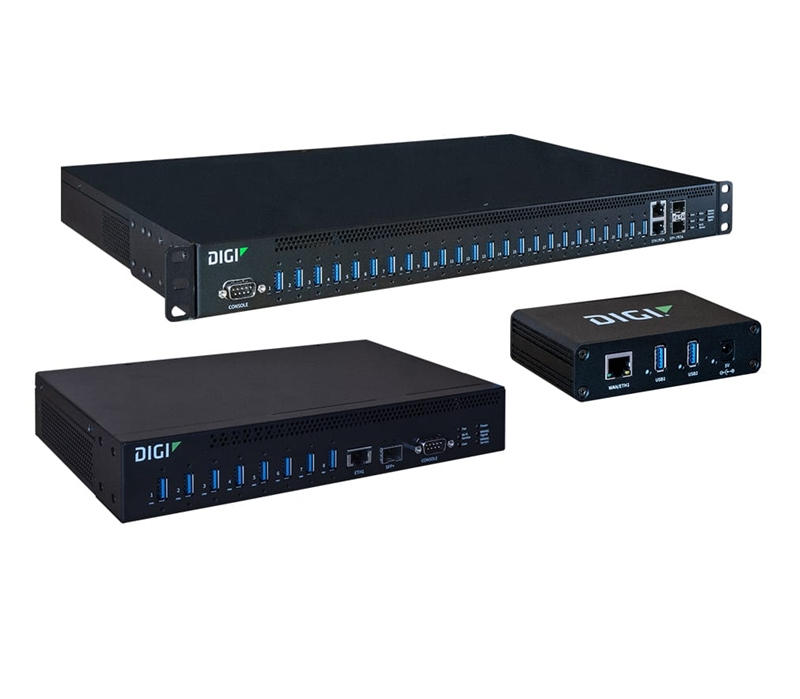

AnywhereUSB 24 Plus is rack mountable with two power supplies and Ethernet connections for failover redundancy

Access and monitor USB and serial devices over TCP/IP connection

Supports multi-host connectivity for each USB port or group independently

Supports Digi Remote Manager® cloud-based management platform to deploy, monitor, manage and maintain a suite of peripherals and devices

Specifications

Specifications AnywhereUSB® 2 Plus AnywhereUSB® 8 Plus AnywhereUSB® 24 Plus
CELLULAR
MODULE SUPPORT (1) Digi CORE modem compliant socket (1) Digi CORE modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (SSH) WebUI (HTTP/HTTPS); CLI (Console, SSH) WebUI (HTTP/HTTPS); CLI (Console, SSH)
OPERATING SYSTEMS Windows 7, Windows 8.1, Windows 10, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
PROTOCOLS Supports multi-host connectivity for each USB port or group independently
MEMORY 512MB RAM, 4GB flash (eMMC) 2GB RAM, 4GB flash (eMMC) 2GB RAM, 4GB flash (eMMC)
NETWORK
ETHERNET (1) RJ-45; 10/100/1000 Mbps (1) RJ-45; 10M/100M/1G/10G Ethernet (2) RJ-45; 10M/100M/1G/10G Ethernet
SFP+ (1) SFP+ socket (2) SFP+ sockets
CONNECTORS
CONSOLE (1) DB09M; RS-232 DTE
USB (2) USB 3.1 Gen 1 Type A (8) USB 3.1 Gen 1 Type A (24) USB 3.1 Gen 1 Type A
PHYSICAL
DIMENSIONS (L X W X H) 4.6 in x 2.9 in x 1.2 in (118 mm x 74 mm x 30 mm) 10 in x 6 in x 1.75 in (260mm x 160 mm x 44.45 mm) 17.75 in x 10 in x 1.75 in (450.85 mm x 255 mm x 44.45 mm)
WEIGHT 0.84 lb (0.38 kg) 3.48 lb (1.58 kg) 10.36 lb (4.7 kg)
STATUS LEDS (2) Ethernet, 2 (x1) USB, power (2) Ethernet, (2) SFP+ 8 (x1 )USB, power, fan, user, (3) future Wi-Fi/WWAN 2 (x2) Ethernet, 2 (x2) SFP+, 24 (x1) USB, 2 (x1)PSU, 2 (x1) fan, user, (3) future Wi-fi/WWAN
POWER REQUIREMENTS
POWER INPUT 5 V, 5 A max 12 V DC, 12 A max 100-240 V 3 A max (2 supplies for redundancy)
POWER CONSUMPTION 25 watts max 98.5 watts max 157.7 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 0 °C to 40 °C (32 °F to 104 °F) 0 °C to 55 °C (32 °F to 131 °F) 0 °C to 55 °C (32 °F to 131 °F)
RELATIVE HUMIDITY 5% to 95% (non-condensing) 5% to 95% (non-condensing) 5% to 95% (non-condensing)
APPROVALS
BLUETOOTH Bluetooth BLE 4.2
SAFETY UL 60950, CSA 22.2 No. 60950, EN60950, EN62368 UL/EN60950, UL/EN62368 and CSA 22.2 UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032 CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032 CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5-year

Parts

AW02-G300

Digi Anywhere 2 Plus Dual USB 3.1, 1 GiG Ethernet Power Connector Barrel Locking
*** CONTACT US FOR VOLUME PRICING ***

In stock

AW08-G300

ANYWHEREUSB 8 Plus 8 x USB 3.1, 1G Ethernet 12V 1 x SFP+, PSU Included
*** CONTACT US FOR VOLUME PRICING ***

In stock

AW08-W300

ANYWHEREUSB 8 Plus with Wi-Fi 8 x USB 3.1, 1G Ethernet 12V 1 x SFP+, PSU Included

In stock

AW24-G300

ANYWHEREUSB 24Plus 24 USB 3.1, 2 x 10G Ethernet 5 Dual SFP+
*** CONTACT US FOR VOLUME PRICING ***

In stock
