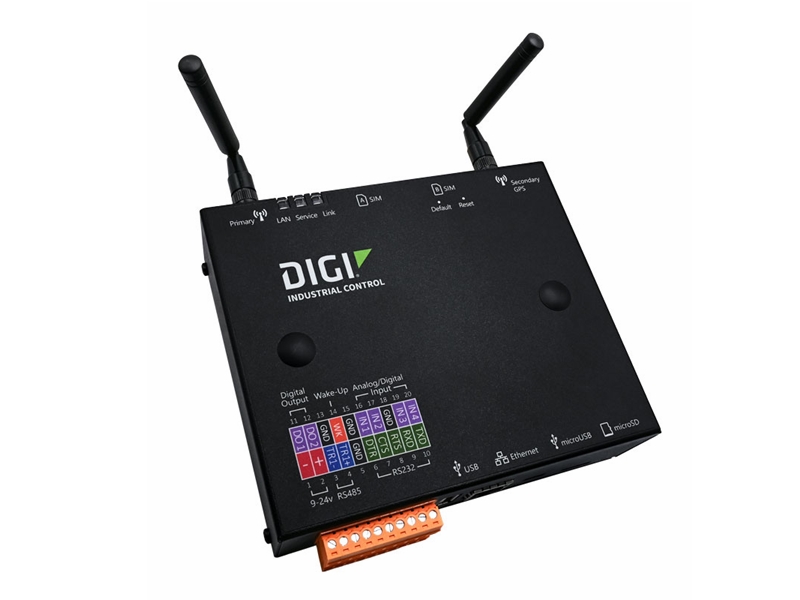

Digi Z45 Industrial Controller with Cellular

The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications.

Includes Skycloud + Automation License

This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development. - Integrated interfaces for analog, digital, hex and pulse information processing - Modbus client and server configurations - Built-in digital and analog input, digital output - Networks connectivity over USB, Ethernet and serial interfaces - On-board dashboard display with gauges, indicators and charts - Self-provisioning devices report to SkyCloud for complete visibility of assets - LTE coverage on all bands for North American carriers with 3G HSPA fallback - Automatic carrier provisioning and dual-SIM failover support

Features

Z45 Industrial Controller

Integrated interfaces for analog, digital, hex and pulse information processing

Cellular technology:

LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8 Multi-carrier, auto-configuration Dual-SIM (2FF) DL MIMO/Rx diversity support (1) 50 O SMA (center pin: male)

Approvals:

FCC, IC, CE, PTCRB Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit www.digi.com/resources/certifications for latest cellular certifications

Position location:

GPS, GLONASS

Host interfaces:

10/100 Ethernet RJ-45 (1) RS-232 (terminal block) (1) RS-485 (terminal block) (1) Full-speed USB (Type A) (1) High-speed micro-USB OTG I

nput / output:

(4) User configurable, digital/analog inputs (0-5 V / 4-20 mA) (2) Digital outputs (expandable with Z1201 I/O Module)

Memory:

128 MB DDR2 RAM 256 MB SLC NAND flash (1) MicroSD Slot (externally accessible)

Platform:

Linux 4.xx operating system Atmel ARM9 processor Web Manager 2.0 SkyCloud services Automation application

Power:

9-24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)

Operating temperature:

-30° to 70° C (-22° to 158° F)

Dimensions:

13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)

Warranty:

3-year standard warranty

Available accessories:

Multifunction I/O Controller - CTK-Z1201S Antenna - external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123 Antenna - pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125 Antenna - multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126 Power supply - wall; US 100-240 VAC / 50-60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127 Power supply - DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85~264 VAC — 76002128 Power supply, DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100-240 VAC 50/60 hz — 76002129 Mount kit - DIN rail SKU 76002130
