Serial Connectivity
Showing all 18 results
Digi CM Series Dual AC Console Server
Digi CM Series Dual AC Console Server
XProduct SKU: 70001951-P
<h3. Digi CM Secure, reliable in- and out-of-band management for servers, routers, switches, firewalls and other network equipment The Digi CM provides secure access to any network device, even when the network is down. Users can monitor and control their devices from anywhere using the corporate TCP/IP network, the Internet or dial-up modem connections. This easy-to-use console management tool is ideal for managing servers, routers, switches and any network device with a serial port. Automatic Device Recognition auto-configures attached devices and populates the Title page with device details. This feature monitors the ports and sends alerts for disconnected or down devices.
Features
– Sun, Cisco, IBM, HP, UNIX®, Linux® and Microsoft Windows Server® compatible – TACACS+, RADIUS, LDAP, Kerberos, local user database provide centralized authentication – SSH v2 ensures secure access – Secure clustering allows multi-server access via one IP address – Port buffering/logging for easy troubleshooting – Straight-through CAT5 cabling for easy, hassle-free server connections – PC Card slot for increased flash, or additional Ethernet/modem connection – Email/pager alerts and SNMP trapsCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Digi Connect ES (Extended Safety)
Digi Connect ES (Extended Safety)
XProduct SKU: DC-ES-8SB-EU-P
DIGI CONNECT® ES (EXTENDED SAFETY)
Extended safety terminal server designed for serial over Ethernet applications that require isolation on and between ports. Digi Connect ES provides serial over Ethernet connectivty. It is IEC 60601 3rd Edition compliant and consists of four or eight galvanic isolated RS-232 serial ports, with a 10/100 Mbps network interface and optional Ethernet switch. Digi Connect ES is used in applications that provide Ethernet connections from serial devices to the central data management system.Features
BENEFITS – 4/8-port RS-232 serial-to-network connectivity – IEC 60601 3rd Edition compliant – Galvanic isolation on all ports – Wall mountable – Patented Digi RealPort® technology provides local serial port functionality – RealPort with encryption available for SSL-based protection for additional security – Ports may be shared between multiple hosts running different operating systemsCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
DIGI CONNECT EZ
DIGI CONNECT EZ
XProduct SKU: EZ04-IAG4-EXT-P
Click-to-connect | Modern, secure serial connectivity that boots in seconds, configures in minutes and runs for years. Most companies are not replacing their equipment - they are updating the way they talk to it. Digi Connect® EZ modernizes operational infrastructure with expanded network connectivity and functionality for today’s applications. It is designed to meet the demands of a wide range of critical serial applications including connecting to automation, robotics control, centralized device management, data acquisition and point-of-sale equipment. Digi Connect EZ is a click-to-connect solution with 1, 2 or 4 serial ports, software-selectable for RS-232/422/485 communication, as well as optional LTE, Wi-Fi and industrial specifications (C1D2). It takes only a few minutes to configure with intelligent, use case-based options so that you can quickly install without having to modify your equipment or applications.
Features
FEATURES AND BENEFITS
- 1, 2 or 4 software-selectable RS-232/422/485 serial ports to connect a wide variety of serial equipment over IP networks - 10/100/1000 Ethernet (dual Ethernet on 2- and 4-port), with optional Wi-Fi, industrial temp, C1D2 rating and LTE - Ideal for applications requiring COM ports, serial tunneling or TCP/UDP sockets - Optimizes performance for the widest range of industry standard and device-specific protocols - Built-in Digi TrustFence® for device security, secure encrypted connections, ongoing monitoring and support - Easy setup and mass configuration with Digi Navigator and Digi Remote Manager®Specifications
CAPABILITIES
- Activate, monitor and diagnose your mission-critical devices from a single point of command and control — on your desktop or mobile app - Schedule key operations — including firmware updates and file management on a single device or on a group of devices, keeping your network functionality up-to-date and maintaining compliance standards - Manage edge devices out-of-band via console terminal access - Keep tabs on device health and connectivity across device deployments of any size - Create detailed reports and enable real-time alerts for specified conditions - Integrate device data through open APIs to gain deeper insights and control with third-party applications - Report and alert on performance statistics, including connection history, signal quality, latency, data usage and packet lossINFRASTRUCTURE
- Hosted in a commercial-grade cloud server environment that meets SOC 1®, SOC 2® and SOC 3® standards - Superior availability, operating to 99.9% or greater - Open APIs available to support application developmentSECURITY
- More than 175 security controls in place to protect your data - Member of the Center for Internet Security® (CIS®) - Enables compliance with security frameworks like ISO27002, HIPAA, NIST and more - Earned Skyhigh’s CloudTrust™ Program highest rating of Enterprise-ReadyCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi ConnectPort LTS 8/16/32 Terminal Server
Digi ConnectPort LTS 8/16/32 Terminal Server
XProduct SKU: 70001611-P
DIGI CONNECTPORTLTS 8/16/32
Next generation serial servers support GB Ethernet and IPv6 networks The ConnectPort LTS terminal server family delivers secure, reliable, flexible and cost-effective RS-232/422/485 serialto-Ethernet connectivity. Targeted serial-to-IP applications include security, property management, point-of-sale, data acquisition, industrial automation, power utilities, logistics and others. Features include dual GB Ethernet for extreme reliability, an SD memory slot for data storage and a large LCD screen for easy configuration, monitoring and diagnostics Highly advanced software features include an IPv4/IPv6 dual stack, user port sharing, port logging, SSHv2 and SSL. Python support and a Software Development Kit (SDK) make this versatile Linux-based appliance a good platform for programmingFeatures
BENEFITS APPLICATION EXAMPLE – Dual GB Ethernet ports for routing – Software selectable RS-232/422/485 (MEI models only) for industrial applications – LCD display for status monitoring, diagnostics and configuration – SD memory slot for data storage, supporting SD and HCSD – Dual power option on 16-port MEI modelCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi ConnectPort TS
Digi ConnectPort TS
XProduct SKU: 70002534-P
CONNECTPORT® TS 8/16
8 and 16 port terminal servers provide 232 only or 232/422/485 selectable serial connectivity for critical applications ConnectPort TS 8/16 serial servers provide secure, easy RS-232 or RS-232/422/485 serial-to-Ethernet integration of virtually any device into wired Ethernet networks. They are ideal for use in a wide variety of demanding applications such as automation, robotics control, centralized device monitoring and management, data acquisition, and point-of-sale applications requiring COM/TTY ports, serial tunnelling or TCP/ UDP functionality. •Dual IPv4/IPv6 stack •8 or 16 serial ports with Tx/Rx LEDs •Patented RealPort® technology for COM/TTY port control/ management •SSL/TLS and SSHv2 for added security •Easy configuration and management through web browser or CLI •232 and MEI (232/422/485 selectable) versionsFeatures
BENEFITS APPLICATION EXAMPLE
– Low latency connectivity for sensitive applications – 8 or 16 RS-232 or software selectable RS-232/422/485 serial ports – Dual IPv4/IPv6 stack – Easy-to-use Python development environment for custom applications – Tx/Rx LEDs per serial port – Patented RealPort® technology for COM/TTY port control/ management – Web proxy support – Per user access controls – Dedicated console port – Digi Remote Manager ® support – SSL/TLS and SSHv2 for added securityCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Digi Console Servers
Digi Console Servers
XProduct SKU: IT16-1002-P
Digi Connect IT 48, console access server with 48 serial ports
- Model: Digi Connect IT 48 - Base hardware: (2) RJ45 10/100/1G Ethernet, (2) SFP+ Ports; (48) RS-232 (Standard/reversed mode selectable), (1) Console port - Cellular network: Digi CORE™ LTE modems support multiple categories; Multiple regions - Remote managerment: Digi Remote Manager® - Power: Use with power supply kit, provides dual replaceable redundant internal power - Accessories: 2 meter Ethernet cable; D89 to RJ45 console adapter - Required accessory kits: (1) Power supply kit (ITPS-PSIK or ITPS-PSEK) - Optional accessory kits: Digi CORE LTE modemsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi Edgeport RS232 to USB Converter
Digi Edgeport RS232 to USB Converter
XProduct SKU: 301-1001-15
Digi Edgeport 1 port RS-232 DB-9 to USB Converter with captive 2 meter USB cable
CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry

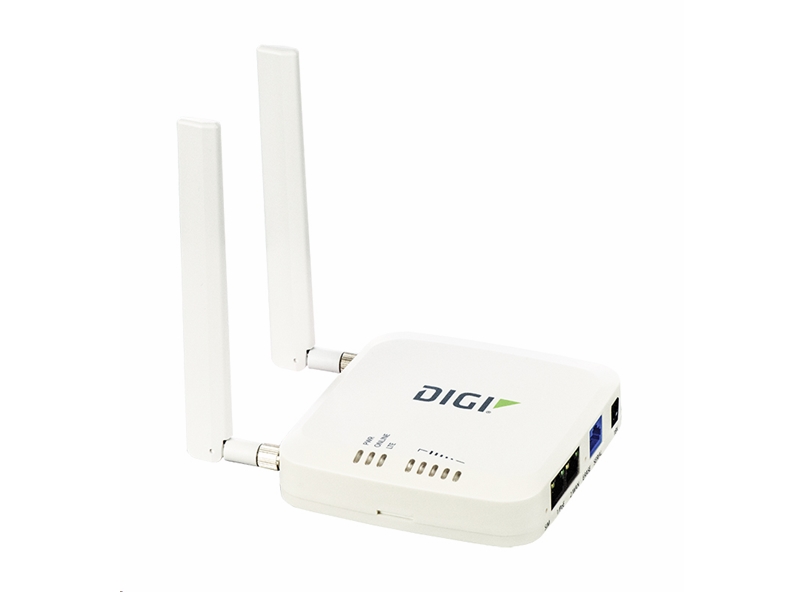

Digi EX12 LTE Cellular Extender
Digi EX12 LTE Cellular Extender
XProduct SKU: EX12-R004-OUS
Digi EX12 LTE Cellular Extender
Avoid network outages with primary or backup LTE connectivity; integrate seamlessly with existing infrastructure Digi EX12 LTE cellular extender is an affordable, scalable failover solution that enables you to retrofit your infrastructure for cellular network access. With a carrier-certified, embedded LTE Cat 4 cellular modem, equipped with dual SIM slots, Digi EX12 provides uninterrupted primary or backup connectivity. It protects against downtime by automatically switching to a secondary cellular carrier should the primary SIM lose Internet access. This compact, high-performance device is also compatible with any dual-WAN networking appliance and helps you achieve reliable connectivity at any location using your existing equipment. Couple the Digi EX12 with a dedicated wireline ISP connection to maximize uptime and ensure reliable network availability for POS systems, ATMs, mobile kiosks, digital signage and more. Deployments are streamlined with installation accessories including an optional Remote Mounting Kit with a disposable battery pack for site survey, mounting bracket and a passive PoE injector for optimizing placement for the best cellular reception. Digi EX12 can be securely monitored and managed with Digi Remote Manager®, a cloud-based solution that facilitates setup, mass configuration and support for Digi and third-party devices. Digi Remote Manager lets you evaluate, update and configure your Digi enterprise routers and gateways — and the health of your network — at scale, after deployment.Features
- Redundant cellular connectivity with dual SIMs and Digi SureLink® - Digi TrustFence® for built-in device security and data privacy - Optional Remote Mounting Kit with bracket, accessories, passive PoE injector and site survey battery pack to identify the best location for optimum cellular reception - Automatic cellular carrier detection and switching with Carrier Smart Select™ - Digi Remote Manager® software for easy setup, mass configuration and managementCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry

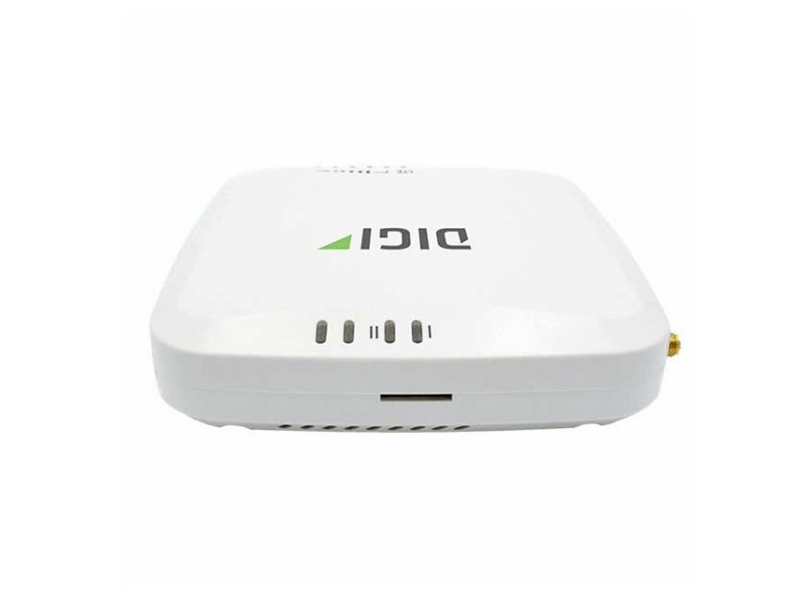

Digi EX15 LTE Cellular Extender
Digi EX15 LTE Cellular Extender
XProduct SKU: ASB-EX15-WX06-GLB
Digi EX15
Branch connectivity in a compact, affordable, all-in-one solution Digi EX15 LTE cellular extenders offer gigabit Ethernet and Wi-Fi connectivity for retailers and other organizations that cannot tolerate network downtime and the negative impact on revenue streams and brand reputation. Manage this device with Digi Remote Manager A suite of upgradeable Digi CORE® plug-in LTE modems lets users select the cellular speeds that best fit their business requirements, including LTE Cat 4, LTE-Advanced Cat 6 and Cat 11 for data-intensive applications, and FirstNet Ready™ LTEAdvanced Pro Cat 18 for critical communications. Combine a Digi EX15 with a dedicated wireline connection to ensure dual ISP connectivity, maximum uptime and complete business continuity for devices that must be “always on,” such as mobile kiosks, digital signs and POS systems. You can use Digi EX15 for primary LTE connectivity, in addition to dual-connectivity/failover. Additionally, the serial port can provide out-of-band (OOB) management for remote, off-premise equipment.Features
- LTE-certified Digi CORE plug-in modem - Scalable cellular technology allows you to match speeds to applications and future proof your network - Optimized connectivity to any Ethernet device - Battery pack for site survey to identify optimal signal strength placement - Multiple mounting options and accessories - Serial port for remote, out-of-band management - Securely deploy, monitor and control devices with Digi Remote Manager - Zero-touch provisioning and cloud managementCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry

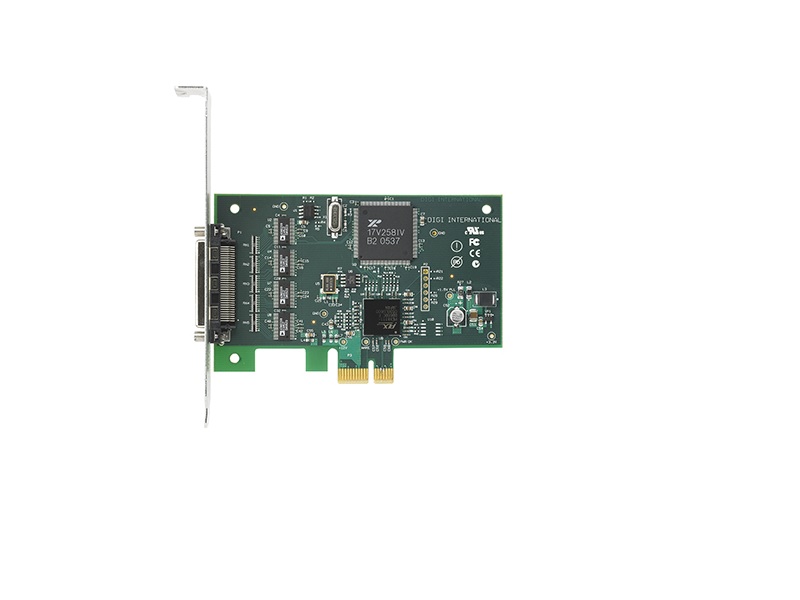

Digi Neo PCI Express
Digi Neo PCI Express
XProduct SKU: 77000889-P
Digi Neo
Flexible serial cards deliver reliable, cost-effective and high performance serial port expansion in one of the smallest form factors available. Digi Neo multiport serial cards are designed for reliable serial port expansion in tight workspaces and specialized server/PC environments. They are ideal for point-of-sale, industrial automation, factory control, kiosks and data collection applications. Leveraging an Application Specific Integrated Circuit (ASIC), Digi Neo delivers up to 921.6 Kbps of throughput. This PCIe compatible card offers on-board surge suppression on each signal, protecting system operation from electrical interference. Additional features include large buffers for data transfer, low latency and baud rate customization.Features
BENEFITS – 4 or 8 RS-232 serial ports – Low Profile and Standard Profile supported – PCI Express slot support – Flexible cabling and connector options – Surge suppression on all signals protects against electrical interference with system operation – Low latency for reliable performance – Windows® and Linux® driver support – Throughput up to 921.6 KbpsCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi Networking – ASB-EX15-WC18-GLB
In stock
Make an Enquiry

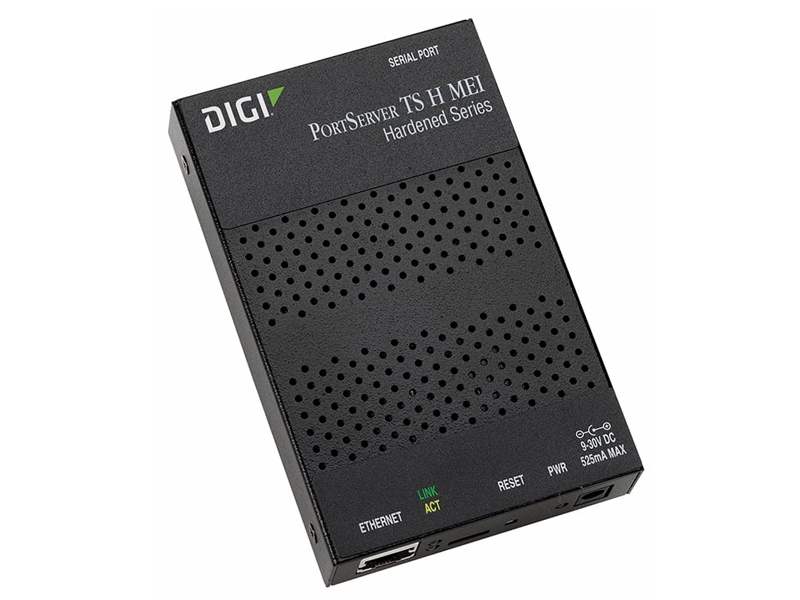

Digi Networking – PortServer TS MEI Hardened
Digi Networking - PortServer TS MEI Hardened
XProduct SKU: 70001917-P
PortServer TS MEI Hardened
Hardened, Rugged Serial Servers for Outdoor Extended Temperatures The PortServer® TS MEI Hardened family of serial servers is designed for serial port expansion where environmental hazards demand extended safety features and operating tolerances. Extended operating temperature (-35° C to +74° C), conformal coated circuit board, NEMA TS 2 and Class 1 Div 2 certifications make these rugged serial servers ideal for use in outdoor applications. Digi's patented RealPort® COM port redirector creates a local COM or TTY port on the host computer, allowing existing software applications to work without modification. The PortServer TS H MEI model is designed for serial-to-Ethernet connectivity in utility plants, pipelines, traffic management facilities and other remote locations requiring extended operating temperatures. Designed to meet NEMA TS 2 and other unique requirements in traffic management installations, the PortServer TS Hcc MEI* model is ideal for network-enabling and remotely managing variable message signs, loop detectors, ramp meters or any RS-232/422/485 serial device. Specialized features include conformal coated PCA for moisture and corrosion protection, screw terminal power connector for durable and reliable power feed, and extended operating temperature tolerance. The PortServer TS Haz MEI serial server offers a conformal coated PCA, extended temperature tolerance and the ability to safely perform in flammable environments (Class 1, Division 2 certified). It is ideal for serial port expansion in factory automation and utility management (gas, electric and water) applications.CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry

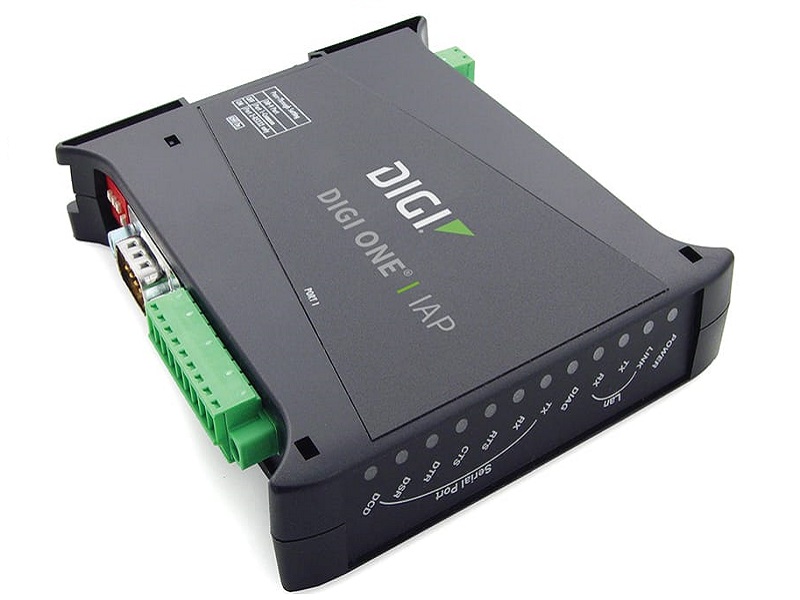

Digi One Industrial Automation
Digi One Industrial Automation
XProduct SKU: 70001777-P
DIGI ONE® IAP
Serial-to-Ethernet connectivity, protocol conversion and protocol interoperability for industrial applications
Digi One IAP combines reliable serial-to-Ethernet connectivity with protocol conversion and interoperability. Users can IP enable a broad range of serial devices, as well as link two industrial devices. It is ideal for device management applications requiring specific industry protocol support.
Serial server functionality built into Digi One IAP allows any serial device to be connected to a TCP/IP network. Applications may communicate with the serial device using TCP/UDP or Digi’s patented RealPort® COM port redirector for remote native COM port access.
Digi One IAP supports a variety of serial and Ethernet protocols, allowing users to bridge serial and Ethernet devices, or both. Multi-master access allows multiple masters to communicate with a single slave across protocols. Digi One IAP converts ASCII data from serial devices to Ethernet protocols. An additional serial port can act as a pass-through port, allowing local devices to communicate with a slave unit
without disrupting the serial-to-Ethernet connection.Features
- 1 DB-9 serial port and additional pass-through port
- TCP/UDP and RealPort for COM/TTY port control and management
- Multi-master/Multi-protocol concurrent support for Allen-Bradley and Modbus protocols
- Serial and Ethernet protocol bridging support for Allen-Bradley and Modbus protocols promotes
interoperability
- ASCII to protocol translation for Allen-Bradley and Modbus
- Switch selectable RS-232/422/485 for simple
interfacing to any type of serial device
- Tunable for low latency or optimized throughput
CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry

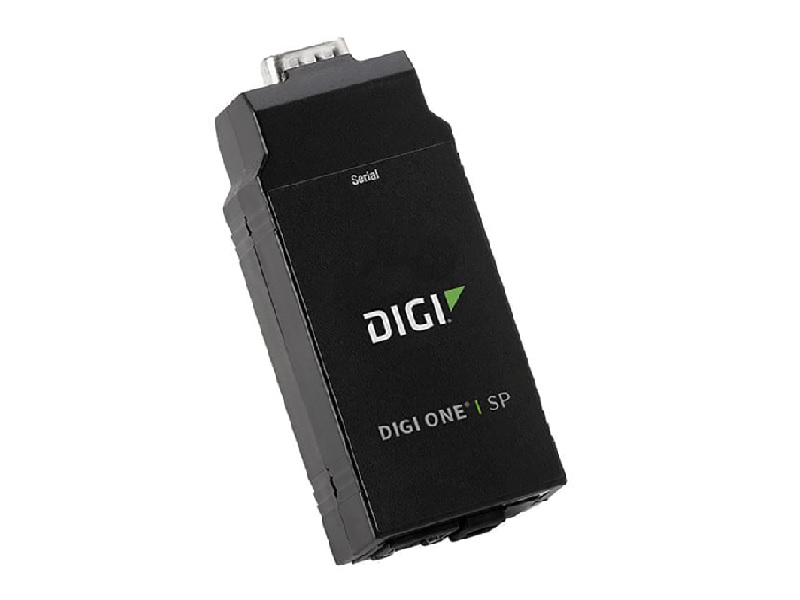

Digi ONE SP Serial Server Series
Digi ONE SP Serial Server Series
XProduct SKU: 70001851-P
DIGI ONE® SP
Cost-effective serial-to-Ethernet connectivity in a compact design for simple data communication applications Digi One SP provides a reliable, cost-effective way to connect any type of serial device to the Ethernet. Its compact design delivers cost-effective performance and capability in one of the smallest form factors available. Digi One SP supports a wide range of protocols using serial tunneling, TCP/UDP connections or Digi’s patented RealPort® COM port redirector for remote native COM port access. RealPort enables existing applications to communicate, without modification, with serial devices over the Ethernet as if they were communicating over a serial cable. Digi One SP is easy to install locally or remotely. The IP address can be configured using DHCP, ARP-Ping or the Device Discovery Utility that automatically detects all Digi One devices on the network. Using the web interface, users can configure advanced functions into their application.Features
– Patented RealPort for COM/TTY port control and management – TCP/UDP Socket Services for broad device connectivity and application use – Auto-connect the serial device to networked server using raw, Telnet, rlogin – Reverse Telnet for easy access of serial devices from network – Switch selectable RS-232/422/485 for simple interfacing to any type of serial device – Modem emulation allows support for devices designed only for modem communicationsCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Digi PortServer TS
Digi PortServer TS
XProduct SKU: 70002041-P
PORTSERVER® TS
- 1, 2, or 4 RS-232 RJ-45 serial ports - RealPort® with encryption provides SSL-based protection - SSHv2 for encrypted connections
Simple, reliable and cost-effective RS-232 serial-to-Ethernet connectivity
PortServer TS serial servers offer a simple, reliable and costeffective solution for connecting multiple serial devices over industry standard Ethernet. Target applications include retail/ point-of-sale, building control and medical point-of-care. Digi’s patented RealPort®, with encryption and user authentication*, makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing software applications to work with networked device servers instead of requiring a host adapter. PortServer TS is easy to install locally or remotely through a variety of IP addressing methods (DHCP, RARP, ARP-Ping) along with an application included on the installation CD that will automatically detect all PortServer devices on your network. *The RealPort encryption feature is compatible with AIX, HP-UX, Solaris, Linux, Windows 2000, Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2008 and Windows Server 2012. The RealPort authentication feature is compatible only with Windows 2000, Windows XP, Windows 7, Windows 8, Windows 8.1,Features
- 1, 2 or 4 RS-232 serial ports for standard serial-toEthernet connectivity - Ideal for applications requiring COM ports, serial tunneling, TCP/UDP sockets, or multiple unicast functionality - Patented RealPort for COM/TTY port control and management - Modem emulation - Monitoring and diagnostic utility - Secure communication via SSHv2 - Tunable for low latency or optimized for throughput - Easy web-based configuration (HTTP/HTTPS)CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Digi PortServer TS MEI
Digi PortServer TS MEI
XProduct SKU: 70001807-P
DIGI PORTSERVER TS MEI
Universal, high-performance RS-232/422/485 serial to Ethernet connectivity PortServer TS MEI provides switch-selectable RS-232/422/485 serial port connectivity, making it easy to connect multiple serial devices to your network. It combines the inherent benefits of data networking with proven asynchronous connectivity to deliver powerful yet simple Ethernet connections for all of your serial devices. Digi’s patented RealPort®, with encryption and user authentication*, makes it possible to establish a connection between the host and networked serial device by creating a local COM or TTY port on the host computer, allowing software applications to work with networked device servers instead of requiring a host adapter. Powerful features including data security via SSHv2, port buffering and full SNMP management, making PortServer TS MEI ideal for applications like console management where device management and monitoring are critical. *The RealPort encryption feature is compatible with AIX, HP-UX, Solaris, Linux, Windows 2000, Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2008 qnd Windows Server 2012. The RealPort authentication feature is compatible only with Windows 2000, Windows XP, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Server 2003, Windows Server 2008 and Windows Server 2012.Features
- 1, 2 or 4 switch-selectable RS-232/422/485 serial ports to connect virtually any type of serial device over Ethernet - Ideal for applications requiring COM ports, serial tunneling, TCP/UDP sockets, or multiple unicast functionality - Patented RealPort for COM/TTY port control and management - Modem emulation - Monitoring and diagnostic utility- - Secure communication via SSHv2 - Tunable for low latency or optimized for throughput - Easy web-based configuration (HTTP/HTTPS)CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry

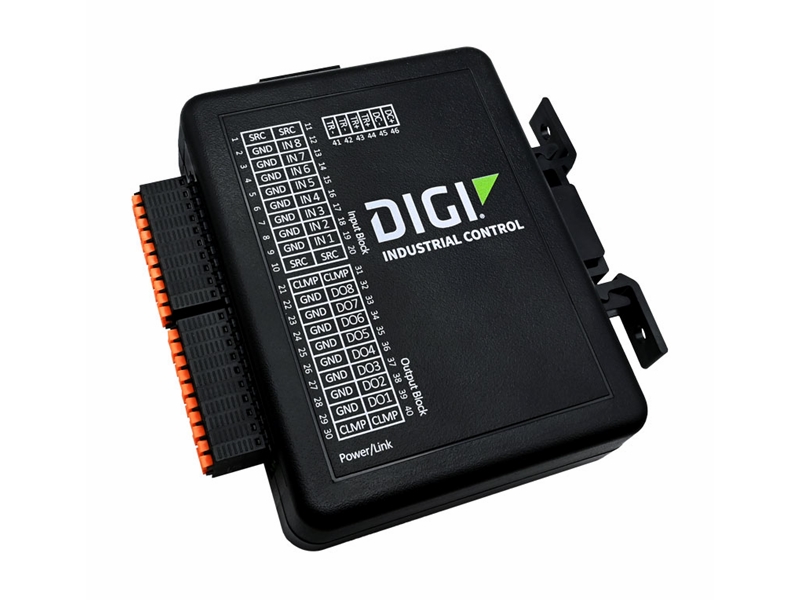

Digi Z1201 Multifunction I/O Controller
Digi Z1201 Multifunction I/O Controller
XProduct SKU: CTK-Z1201
Digi Z1201 I/O Module
Giving you a greater degree of scalability for remote I/O control and monitoring applications
Avoid the extra cost of an additional controller and effort of maintaining multiple applications. Start with a Digi Z45 Industrial Controller and add I/O by connecting Digi Z1201 expansion modules for a solution tailored to your system.
With support for various I/O combinations — relays, digital, analog, pulse, inputs and outputs — the expandable Digi Z1201 I/O module provides monitoring and controlling for use cases requiring unique I/O combinations. On-device logic is supported from anywhere by Digi’s Z45 Industrial Controllers. Our controllers perform simple to medium complexity control logic, similar to that of a Programmable Logic Controller (PLC). Unlike a PLC, our controllers are designed for remote, distributed I/O applications in a single end-to-end solution. Data communication between Z45 Industrial Controllers and Z1201 modules is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application. Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation. The module can be daisy-chained for expansion beyond a single I/O module.Features
SPECIFICATIONS
GENERAL FEATURES - RS-485, 2-wire interface - 8 open collector outputs, 30 VDC max - 8 multi-mode inputs, 30 VDC max - Pulse counting - Analog inputs - Digital outputs INPUTS - Maximum input voltage: 30 VDC - Input logic, Low /= 4 - Sample rate: 512 Hz CONFIGURABLE I/O: DIGITAL OUTPUTS - Open collector output rating: 30 V 350 mA single output, 250 mA with all outputs on - Max update frequency: 60 Hz - Pulse width modulation: 7.8 KHz, 8-bit resolution CONFIGURABLE I/O: ANALOG INPUTS - Measurable range: 0-5 VDC - Read frequency: 20 Hz - Analog input A/D conversion: 12-bit with 10 mV CONFIGURABLE I/O: PULSE INPUTS - Max pulse width: 3 msec - Max count stored between reads: 32,767 CONTROL INTERFACE - RS-485 2-wire - Protocol: Proprietary Automation Control POWER Input: - 9-24 VDC (external source) - Consumption: 100 mA (excluding active inputs) ENVIRONMENTAL - Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F) - Humidity: 90% non-condensing MOUNTING - 35 mm DIN DIMENSIONS - 10.719 x 6.02 x 3.33 cm (4.22 x 2.37 x 1.312 in), excluding terminal block and DIN clip WEIGHT - 0.29 kg (0.63 lb), without power adapter WARRANTY - 1-year standard warrantyCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi Z45 Industrial Controller
Digi Z45 Industrial Controller
XProduct SKU: CTK-Z4550A2M-P
Digi Z45 Industrial Controller with Cellular
The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications.
Includes Skycloud + Automation License
This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development. - Integrated interfaces for analog, digital, hex and pulse information processing - Modbus client and server configurations - Built-in digital and analog input, digital output - Networks connectivity over USB, Ethernet and serial interfaces - On-board dashboard display with gauges, indicators and charts - Self-provisioning devices report to SkyCloud for complete visibility of assets - LTE coverage on all bands for North American carriers with 3G HSPA fallback - Automatic carrier provisioning and dual-SIM failover supportFeatures
Z45 Industrial Controller
Integrated interfaces for analog, digital, hex and pulse information processingCellular technology:
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8 Multi-carrier, auto-configuration Dual-SIM (2FF) DL MIMO/Rx diversity support (1) 50 O SMA (center pin: male)Approvals:
FCC, IC, CE, PTCRB Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit www.digi.com/resources/certifications for latest cellular certificationsPosition location:
GPS, GLONASSHost interfaces:
10/100 Ethernet RJ-45 (1) RS-232 (terminal block) (1) RS-485 (terminal block) (1) Full-speed USB (Type A) (1) High-speed micro-USB OTG Input / output:
(4) User configurable, digital/analog inputs (0-5 V / 4-20 mA) (2) Digital outputs (expandable with Z1201 I/O Module)Memory:
128 MB DDR2 RAM 256 MB SLC NAND flash (1) MicroSD Slot (externally accessible)Platform:
Linux 4.xx operating system Atmel ARM9 processor Web Manager 2.0 SkyCloud services Automation applicationPower:
9-24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)Operating temperature:
-30° to 70° C (-22° to 158° F)Dimensions:
13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)Warranty:
3-year standard warrantyAvailable accessories:
Multifunction I/O Controller - CTK-Z1201S Antenna - external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123 Antenna - pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125 Antenna - multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126 Power supply - wall; US 100-240 VAC / 50-60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127 Power supply - DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85~264 VAC — 76002128 Power supply, DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100-240 VAC 50/60 hz — 76002129 Mount kit - DIN rail SKU 76002130CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
