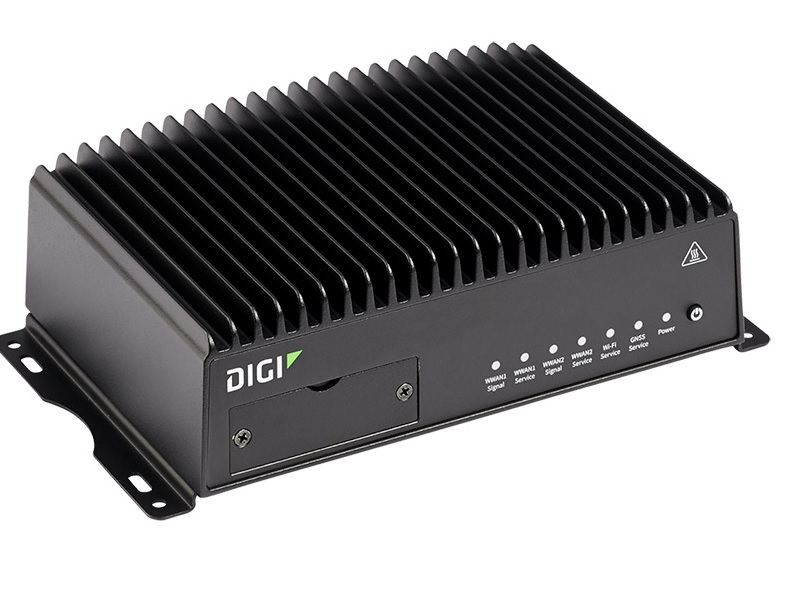

Digi WR54/WR64 Cellular Router
Digi WR54/WR64 Cellular Router
XProduct SKU: WR54-A106
Rugged and secure cellular router for mission critical industrial and transportation applications, including FirstNet Ready™ models for public safety networks
The versatility and performance of Digi WR54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. FirstNet Ready™ Digi WR54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.Features
- Model: Digi TransPort WR54 - Base Hardware: (4) RJ-45 Ethernet, (1) DB-9 RS-232 - Cellular Network: Single cellular module with global LTE coverage - LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B28, B29, B30, B66 - LTE TDD: B38, B40, B41 - 3G HSPA: B1, B2, B4, B5, B8 - Transfer rate (max): 600 Mbps down, 75 Mbps up (Cat 11) - Wi-Fi: Single 2x2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac - Power Connector: 3-pin Terminal Block with Ignition Sense - Accessories not included with this product: See additional accessory options belowCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry

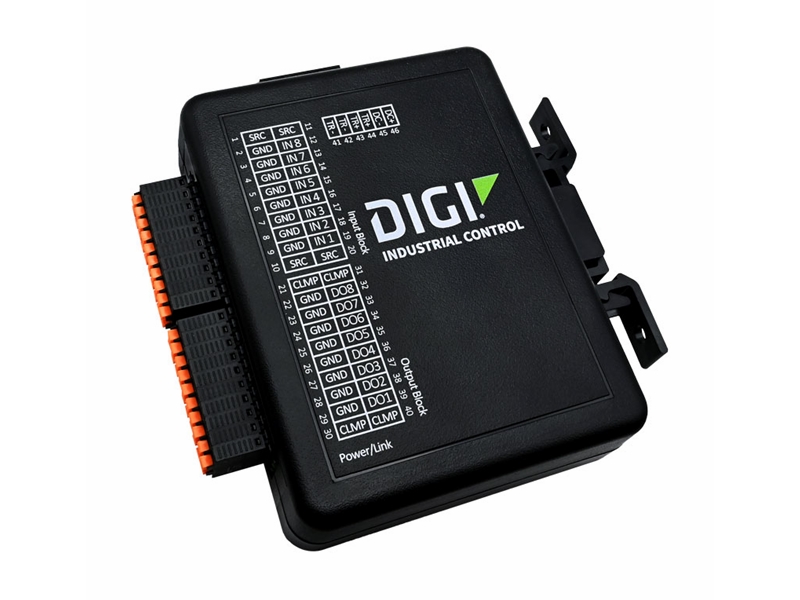

Digi Z1201 Multifunction I/O Controller
Digi Z1201 Multifunction I/O Controller
XProduct SKU: CTK-Z1201
Digi Z1201 I/O Module
Giving you a greater degree of scalability for remote I/O control and monitoring applications
Avoid the extra cost of an additional controller and effort of maintaining multiple applications. Start with a Digi Z45 Industrial Controller and add I/O by connecting Digi Z1201 expansion modules for a solution tailored to your system.
With support for various I/O combinations — relays, digital, analog, pulse, inputs and outputs — the expandable Digi Z1201 I/O module provides monitoring and controlling for use cases requiring unique I/O combinations. On-device logic is supported from anywhere by Digi’s Z45 Industrial Controllers. Our controllers perform simple to medium complexity control logic, similar to that of a Programmable Logic Controller (PLC). Unlike a PLC, our controllers are designed for remote, distributed I/O applications in a single end-to-end solution. Data communication between Z45 Industrial Controllers and Z1201 modules is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application. Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation. The module can be daisy-chained for expansion beyond a single I/O module.Features
SPECIFICATIONS
GENERAL FEATURES - RS-485, 2-wire interface - 8 open collector outputs, 30 VDC max - 8 multi-mode inputs, 30 VDC max - Pulse counting - Analog inputs - Digital outputs INPUTS - Maximum input voltage: 30 VDC - Input logic, Low /= 4 - Sample rate: 512 Hz CONFIGURABLE I/O: DIGITAL OUTPUTS - Open collector output rating: 30 V 350 mA single output, 250 mA with all outputs on - Max update frequency: 60 Hz - Pulse width modulation: 7.8 KHz, 8-bit resolution CONFIGURABLE I/O: ANALOG INPUTS - Measurable range: 0-5 VDC - Read frequency: 20 Hz - Analog input A/D conversion: 12-bit with 10 mV CONFIGURABLE I/O: PULSE INPUTS - Max pulse width: 3 msec - Max count stored between reads: 32,767 CONTROL INTERFACE - RS-485 2-wire - Protocol: Proprietary Automation Control POWER Input: - 9-24 VDC (external source) - Consumption: 100 mA (excluding active inputs) ENVIRONMENTAL - Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F) - Humidity: 90% non-condensing MOUNTING - 35 mm DIN DIMENSIONS - 10.719 x 6.02 x 3.33 cm (4.22 x 2.37 x 1.312 in), excluding terminal block and DIN clip WEIGHT - 0.29 kg (0.63 lb), without power adapter WARRANTY - 1-year standard warrantyCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry

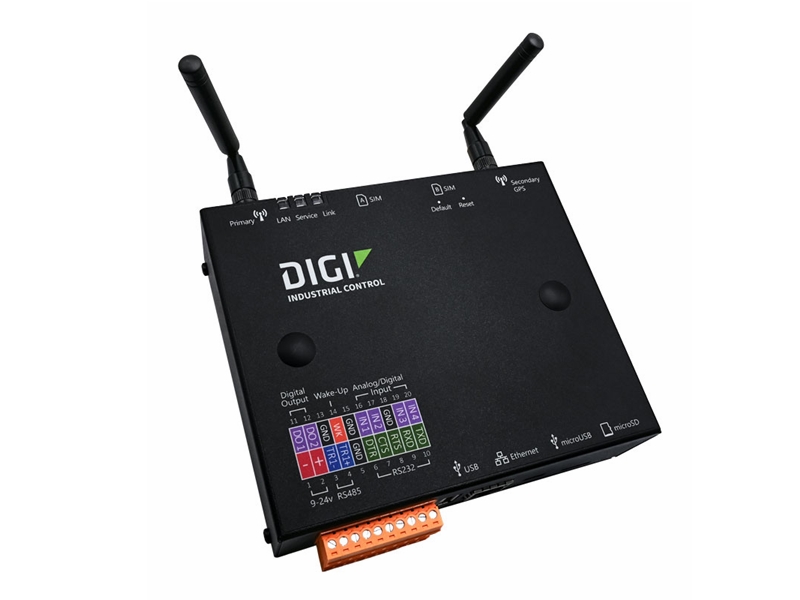

Digi Z45 Industrial Controller
Digi Z45 Industrial Controller
XProduct SKU: CTK-Z4550A2M-P
Digi Z45 Industrial Controller with Cellular
The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications.
Includes Skycloud + Automation License
This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development. - Integrated interfaces for analog, digital, hex and pulse information processing - Modbus client and server configurations - Built-in digital and analog input, digital output - Networks connectivity over USB, Ethernet and serial interfaces - On-board dashboard display with gauges, indicators and charts - Self-provisioning devices report to SkyCloud for complete visibility of assets - LTE coverage on all bands for North American carriers with 3G HSPA fallback - Automatic carrier provisioning and dual-SIM failover supportFeatures
Z45 Industrial Controller
Integrated interfaces for analog, digital, hex and pulse information processingCellular technology:
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8 Multi-carrier, auto-configuration Dual-SIM (2FF) DL MIMO/Rx diversity support (1) 50 O SMA (center pin: male)Approvals:
FCC, IC, CE, PTCRB Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit www.digi.com/resources/certifications for latest cellular certificationsPosition location:
GPS, GLONASSHost interfaces:
10/100 Ethernet RJ-45 (1) RS-232 (terminal block) (1) RS-485 (terminal block) (1) Full-speed USB (Type A) (1) High-speed micro-USB OTG Input / output:
(4) User configurable, digital/analog inputs (0-5 V / 4-20 mA) (2) Digital outputs (expandable with Z1201 I/O Module)Memory:
128 MB DDR2 RAM 256 MB SLC NAND flash (1) MicroSD Slot (externally accessible)Platform:
Linux 4.xx operating system Atmel ARM9 processor Web Manager 2.0 SkyCloud services Automation applicationPower:
9-24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)Operating temperature:
-30° to 70° C (-22° to 158° F)Dimensions:
13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)Warranty:
3-year standard warrantyAvailable accessories:
Multifunction I/O Controller - CTK-Z1201S Antenna - external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123 Antenna - pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125 Antenna - multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126 Power supply - wall; US 100-240 VAC / 50-60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127 Power supply - DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85~264 VAC — 76002128 Power supply, DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100-240 VAC 50/60 hz — 76002129 Mount kit - DIN rail SKU 76002130CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Inseego – M2000 5G MiFi Mobile Hotspot
Inseego - M2000 5G MiFi Mobile Hotspot
XProduct SKU: MORETTI M2000
5G MiFi® M2000 Series
Mobile Hotspots
A powerful 5G connection for all your devices
The 5G MiFi M2000 is built for speed, with multi-gigabit 5G performance, Wi-Fi 6 technology (connecting up to 30 Wi-Fi devices) and fast, seamless 4G LTE fallback.*
This groundbreaking gateway brings the power of 5G to AR/VR users, first responders, mobile workers, remote offices, high-speed streaming, gaming and many other applications.
It protects your connections with enterprise-grade security, including advanced encryption, hacker prevention, password protection, VPN pass-through, Open VPN, Guest Wi-Fi network and more.
An intuitive touchscreen, simple menus and advanced management tools make it easy to set up, connect and go. IT administrators can also configure and lock corporate settings.
With go-anywhere mobility, all-day battery life and quick-charging technology, the 5G MiFi M2000 gives you the freedom to perform at your best and experience a new world of wireless amazement.
Mobile Hotspots
A powerful 5G connection for all your devices The 5G MiFi M2000 is built for speed, with multi-gigabit 5G performance, Wi-Fi 6 technology (connecting up to 30 Wi-Fi devices) and fast, seamless 4G LTE fallback.* This groundbreaking gateway brings the power of 5G to AR/VR users, first responders, mobile workers, remote offices, high-speed streaming, gaming and many other applications. It protects your connections with enterprise-grade security, including advanced encryption, hacker prevention, password protection, VPN pass-through, Open VPN, Guest Wi-Fi network and more. An intuitive touchscreen, simple menus and advanced management tools make it easy to set up, connect and go. IT administrators can also configure and lock corporate settings. With go-anywhere mobility, all-day battery life and quick-charging technology, the 5G MiFi M2000 gives you the freedom to perform at your best and experience a new world of wireless amazement.CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Inseego – Wavemaker Pro FX2000 Indoor 5G Router
Inseego - Wavemaker Pro FX2000 Indoor 5G Router
XProduct SKU: WAVEMAKER PRO FX2000E-P
HIGH PERFORMANCE CONNECTIVITY INSEEGO WAVEMAKER™5G INDOOR ROUTER FX2000
5G gigabit speeds
The 5G FX2000 indoor router provides gigabit-class download speeds1 and supports remarkably fast 4G fall-back at LTE Cat 22 speeds for extended coverage.Superior connectivity
Designed with multiple connection options to meet your needs. The FX2000 provides dual-band Wi-Fi 6 and supports up to 32 connected devices, USB, and one Ethernet LAN ports that supports up to 1 Gbps.Work from home or distance learning
Stay connected to the office and classroom using your Wi-Fi enabled laptops & tablets - all on a fast and easy to use mobile connection.Secure, private network
Your security is our priority. FX2000 safeguards your data with advanced encryption, hacker prevention, password protection, OpenVPN, parental controls, guest Wi-Fi network and moreFeatures
Gigabit-class 5G and LTE speeds* Delivers fast internet access to business and enterprise customers worldwide with breakthrough 5G and 4G LTE speeds. Superior connectivity Designed with multiple connection options, the FX2000e provides dual-band Wi-Fi 6 for up to 32 connected devices and an ethernet LAN port. Enterprise-grade security Provides OpenVPN, access control, end-to-end device security, threat identification, monitoring and threat alerts and other protections. Mobile and cloud device management Use the Inseego Mobile App to install and get connected quickly. The Inseego Connect cloud-based solution enables advanced remote device management for multiple FX2000 series devices from a single user-friendly platform.CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Inseego – Wavemaker Pro FG2000e Indoor 5G Router
Inseego - Wavemaker Pro FG2000e Indoor 5G Router
XProduct SKU: WAVEMAKER PRO FG2000E
SUPERIOR WIRELESS INDOOR ROUTER CONNECTIVITY WITH THE INSEEGO WAVEMAKER PRO 5G FG2000e
Boundless Performance
The FG2000e offers a blazing fast 5G indoor fixed wireless solution with high performance RF and antenna design using Qualcomm’s Snapdragon SDX55. Support for external antenna.Advanced Router Functionality
Concurrently connects 128 devices with dual-band Wi-Fi 6, 4x4 MIMO, multiple Ethernet LAN ports up to 5 Gbps LAN port for high powered data usage for versatility to fit your business needs.High Availability with Dual SIM
Support for up to 2 carrier SIMs and auto switching between cellular networks and ethernet WAN. Multi-carrier firmware allows the FG2000e to be used on most major global carriers.Inseego Secure
FG2000e provides OpenVPN, IPsec VPN, and access control. Additionally, enterprise grade Inseego Secure offers end-to-end device security, threat identification, monitoring and alerts to protect against the latest malware, ransomware, spyware attacks.Inseego Connect Advanced
Our Inseego Connect Advanced platform provides in depth device management capabilities, diagnostics, and ability to remotely manage a fleet of devices from a single dashboard.Features
Network Connectivity
5G Sub6 Only or Sub6 + mmW 4G LTE CAT 22 4x4 MIMO Sub6, 2x2 MIMO mmW 256 QAM Sub6, 64 QAM mmW HSPA+/UMTSWi-Fi
802.11 a/b/g/n/ac/ax Wi-Fi 6 with 4x4 MU-MIMO Real Simultaneous Dual-Band Wi-Fi Multiple SSID/Guest Wi-Fi Support Supports up to 128 Wi-Fi Enabled DevicesPorts
3x LAN 5/ 1/ 1 Gbps 1x WAN 1 Gbps RJ11 for VoLTE2Location
Standalone and Assisted -GPSSIM
Dual SIM, (2) Nano 4FF SIM Slots Multi-carrier support with auto-switchingDimensions & Weight
230 mm x 76 mm x 172.5 mm (9” x 3” x 6.8” ) 1675 g (59 oz)Operating Temperature
0°C to 45°C (32°F to 113°F)CONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Inseego – Wavemaker Pro FW2000 External 5G Modem
Inseego - Wavemaker Pro FW2000 External 5G Modem
XProduct SKU: 649496 02583 0-P
BRINGING FAST 5G CONNECTIVITY TO MORE CUSTOMERS INSEEGO WAVEMAKER™ 5G OUTDOOR MODEM FW2000
High gain antennas
Sophisticated antenna array delivers up to 14dbi gain to achieve longer range and higher all-around data throughput at all distances.Fast 5G connectivity
Delivers fast 5G speeds, higher bandwidth and low latency to more suburban and rural customers.Advanced security
Strong security, encryption, and third party penetration testing ensure protection of customer data.Device management + Inseego Connect
Convenient remote device management capabilities for a single device included, plus tiered upgrade options for advanced device management, monitoring and diagnostics for multiple devices from a single dashboard.Features
5G FW2000 Product Specifications
Connectivity
5G Sub6 4G LTE CAT 22 4x4 MIMO Sub6 256 QAM Sub6Bands Supported
5G NR: n1/n2/n3/n5/n7/n12/n20/n25/n28/n38/n40/n41/n46/n48/n66/n71/n77/n78 4G LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B20/B25/B26/B28/B29/B30/B32/B38/B39/B40/B41/B42/B43/B46/B48/B66/B71 Band support varies by regional SKUChipset
Qualcomm® Snapdragon™ SDX55Ports
(1) 5Gbps Ethernet LAN PortLED Indicators
(1) Power and status LEDPower
Power over Ethernet (PoE)Hign Gain Antennas
14dBi: 3.3GHz - 4.2GHz 12dBi: 1.7GHz - 2.7GHz 5dBi: 1.5GHz 0-4dBi: 600MHz - 1.0GHzCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Inseego – Wavemaker Pro S2000e Industrial 5G Router
Inseego - Wavemaker Pro S2000e Industrial 5G Router
XProduct SKU: WAVEMAKER PRO S2000E
INSEEGO WAVEMAKER™ PRO 5G INDUSTRIAL GATEWAY S2000e THE WORLD’S FASTEST, MOST DEPENDABLE 5G GATEWAY
Ultra-reliable global connectivity
The S2000e supports any public or private network and operates on numerous service provider networks around the world. It connects to any routing system or remote endpoint with Ethernet or USB using DHCP (router mode or IPPT modem mode).24/7 Continuous multi-gigabit connection
Get connected and stay connected. Advanced thermal management, WAN management and dual SIM management with active keep-alive, ensures your business is always connected.Millisecond latency
Ultra-low latency, unlocked by 5G commercial or private networking, for real time data access and management.Industrial-grade hardware
Proprietary thermal design allows for use in a server room, harsh factory environment or even outdoor enclosures while operating at multi-gigabit speeds. Mounting options vary from desktop to wall, rack pole or DIN rail install.Remote management
Convenient remote device management capabilities for a single device, plus in-depth remote device management capabilities and diagnostics for multiple devices from a single dashboard with Inseego ConnectTMFeatures
Connectivity • Sub6 Only or Sub6 + mmW • 8CC / 800 MHz mmW Max Bandwidth • 200 MHz Sub6 Max Bandwidth • 5G NR Sub6 Only or 5G NR Sub6 and mmW SKUs • 5G NR Standalone (SA) Sub6 and Non-Standalone (NSA) Sub6/mmW • Dynamic Spectrum Sharing (DSS) • 4G LTE CAT 22 Fallback Ports • 1x 5 Gb Ethernet RJ45 with Power over Ethernet, 4.9 Gbps Max Throughput • 1 x USB 3.1 Type C (USB Tethering, USB WAN Modem, USB to Ethernet RJ45 Adapter), 2.7 Gbps Max Throughput • 6 x Female SMA for Cellular • 1 x Female SMA for GNSS • 1 x 4 Pin Power and I/O (2 x Digital Input Output Pins) Power options • 4 Pin AC Power Supply • 4 Pin DC Power and I/O Supply • PoE Injector • USB Power Delievery (15W Min), requires 15W from USB PD Host Positioning • L1/L5 Active GPS Band Support • Active Antenna Support • Assisted Cellular GPS Support Dimensions & weight • 200 x 80 x 45 mm • 496 g Environmental • Operation: -30 to 65 °C, Storage: -40 to 85 °C • IP41 rated SIM • 2x User Accessible 4FF Nano SIM • Multi-carrier support with Auto-Switching Chipset • Qualcomm® Snapdragon™ SDX55 Systems supported • Windows® 8, 10 • Mac OS® X 10.10 or Higher • Linux® Ubuntu 14.04 or Higher • Chrome OS v79 or Higher Networking • WAN with Active Keep-Alive • Dual SIM with Auto-APN and Automatic Switching • Ethernet or USB IP Passthrough (IPPT, Modem Mode) • Port Forwarding • Port Filtering • MAC Filtering • DHCP • DMZ • Configurable DNS • MAC Address Filtering • Public and Private APN Support • Commercial and Private LTE 5G Support • USB WAN Support2 Security • Device Cybersecurity Agent2 • NAT Firewall • VPN Pass-Through, Open VPN, IPsec VPN2 • Security Hardened Web Interface • Fully Encrypted Log Files • Fully Encrypted Cloud Agent • Anti-CSRF • Session Timeout and Incorrect Password Lockout • Admin Portal to Block Factory Reset Standards /approvals /certifications • FCC/IC/CE/RCM/TELEC2 • GCF/PTCRB • EN/IEC 62368 • UL 2710 • REACH/ROHS/WEEE/Halogen Free Accessories • AC Adapter • DC and I/O Cable • POE Injector • FIXED Wall/Pole, Adjustable Wall/Pole, and DIN Rail Mounting Brackets • Dipole and Multi-Element AntennaCONTACT US FOR VOLUME PRICING
In stock
Make an Enquiry
Inseego USB 8 Global USB Modem
Inseego USB 8 Global USB Modem
XProduct SKU: USB8
Inseego 4G LTE Global USB Modem
Easy to Use
The USB8 provides instant 4G LTE connectivity for your laptop or other device, with no software or device drivers to install. Just plug it in and connect. It’s that simple.Tiny and Mighty Design
Its tiny and mighty design comes with a swivel hinge to adjust to any USB port orientation.Fast and Global
The fastest USB modem, with peak download speeds of 480 Mbps. Global connectivity covering LTE, HSPA+ and UMTS bands in over 200 countries.Failover Protection
In addition to connecting mobile users, the USB8 can provide failover communications for point-of-sale systems, kiosks and other IoT devices. With integrated sGPS technology, it’s also ideal for tracking mobile assets.Ready for Any Workday
USB8 is ready and able to accommodate the demands of every workday. Perfect for businesses and public sectors limiting connection to cellular data only. Certified to support first responders protecting and serving our communities.Safe and Secure
Connect with confidence knowing your data is secure. USB8 features the latest cellular security protocols supporting corporate VPNs and remote management.Technology by Inseego: Always a Step Ahead
With advanced security, intelligent antenna features and more, Inseego always keeps you on the leading edge.Features
Features: Plug-and-play (no device drivers or software required) Swivel hinge for easy USB port orientation Compact form factor Global connectivity in 200+ countries FirstNet Ready Enterprise-grade security features Integrated sGPS technology supports device tracking Multi-color status LEDs 2x2 MIMO Chipset: Qualcomm® SDX20 chipset SIM type: 4FF Network technology: Cat 18 LTE Dimensions & weight: Height: 3.58 inches (91 mm) Width: 1.45 inches (37 mm) Depth: 0.45 inches (11.4 mm) Weight:? 2.4 oz (68 g) Advanced networking: 4G LTE CAT 18, 480 Mbps LTE Max Throughput B1/B2/B3/B4/B5/B7/B12/B13/B14/B17/B18/B20/B28/B29/B30/B66 HSPA+/UMTS B1/B2/B4/B5/B8 Carrier Aggregation 5 CC Download CA 2x2 MIMO Security features: Security hardened web interface Admin password hash Incorrect password lockout Parameter tampering Web UI operating systems supported: Windows® 7 or higher Mac OS® X 10.5 or higher Linux® Ubuntu 12.4 or higher Operating temperature: 14 °F to 131 °F (-10 °C to 55 °C)CONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
