Compatibility: TransPort WR21 (RS485 models), TransPort WR31, ConnectPort X4 IA Contains: US and EU Power Cords Rated input voltage range: 120VAC - 240VAC Input frequency: 47Hz - 63Hz Rated input current: 0.4A @ 115VAC 0.2A @ 230VAC Max. in-rush current: 25A @ 115VAC 50A @ 230VAC Input Plug Type: IEC320 C14 Max. load current: 1.0A Min. load current: 0A Output Power: 12W Output Plug: Connector Type: Bare Wire Operating Temperature: -35° C to 74° C Storage Temperature: -35° C to 85° C Size (LxHxW): 93 x 34.3 x 57mm Weight: 220g Cord Length: 4 ft Certifications: UL, cUL, CE

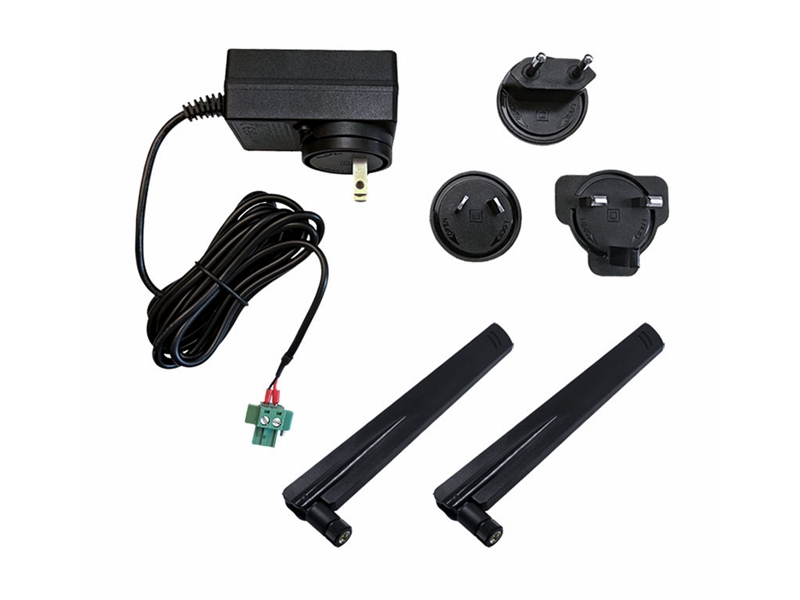

Digi LTE Industrial Starter Kit

Suitable for Digi IX10, Digi IX20, Digi IX40

The starter kit includes: 30 W power supply 2 wideband cellular antennas

Power supply specifications:

Compatibility: Digi IX10, Digi IX20, Digi IX40 Contains: Power supply with plug tips for US, UK, EU, AU Rated input voltage range: 100 - 240 V Input frequency: 50 - 60 Hz Rated input current: 0.6 A Max. in-rush current: 40 A at 230 VAC Input plug type: Removable plug tips for US, UK, EU, AU Max. load current: 1.66 A Min. load current: 0 A Output power: 30 W Operating temperature: -20 °C to 70 °C (-4 °F to 158 °F) Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F) Size (L x H x W): PSU (excluding lead): 71.2 mm x 43.2 mm x 31 mm excluding removable plug tips; 115 mm x 75 mm x 65 mm in packaging box (with plug tips) Weight: In packaging with plug tips: 300 g (0.66 lb) Cord length: 1.83 m +/-50 mm (6 ft +/-2 in) Certifications: UL/CSA, CE, GS, UKCA, SAA, ROHS, REACH

Antenna specifications:

Frequency range: 600 to 6000 MHz Input impedance: 50 O VSWR: = 3.0 Gain: = 5 dBi Polarization type: Linear Antenna size: 221 mm x 26.95 mm x 13.5 mm (8.7 in x 1.06 in x 0.53 in) Casing: ABS Connector type: SMA male (center pin) Operating temperature: -20 °C to 80 °C (-4 °F to 176 °F) Radome color: Black IP rating: IP55

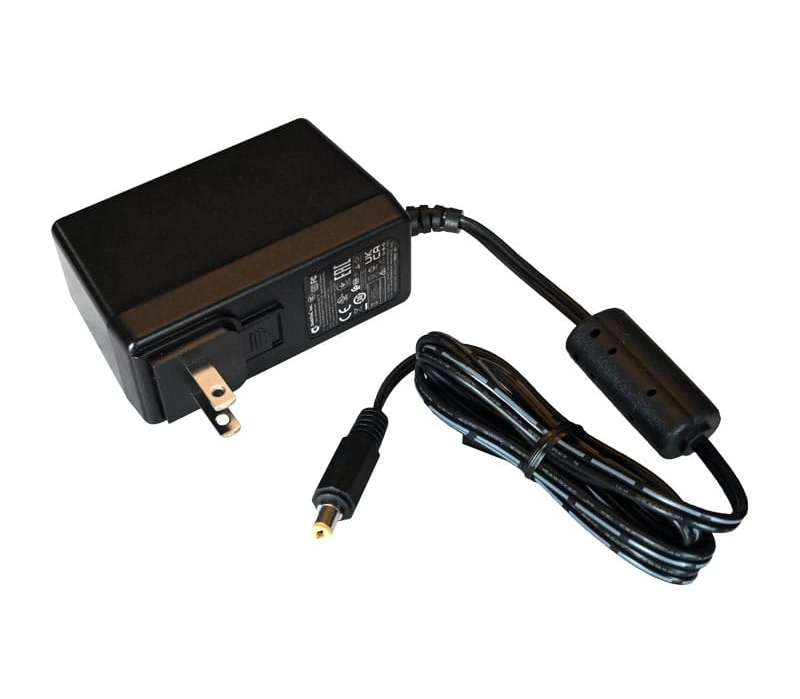

Power Supply 12 VDC 3 A wall plug, locking barrel, with tips for US, UK, EU and AU For Digi Connect EZ 2 and EZ 4

AC Power Supply – 12VDC, 100-240VAC, IEC320-C14 input plug, locking barrel, AC power cord not included. Compatibility: 9-30V Adapters

Input Specifications: Rated input voltage range: 100VAC - 240VAC Input frequency: 47Hz - 63Hz Rated input current: 0.6A Max. in-rush current: 30A@115VAC, 60A@230VAC Input Plug Type: IEC 60320 C14 Output Specifications: Output Voltage: 12VDC Max. load current: 1.5A Min. load current: 0A Output Power: 18W Output Plug: Connector Type: Locking barrel plug Outer Diameter: 5.5mm Inner Diameter: 2.1mm Environment: Operating Temperature: 0° C to 40° C Storage Temperature: -20° C to 85° C Dimensions: Size (LxHxW): 92 x 31 x 50mm Weight: 166g Cord Length: NA Certifications: UL, cUL, PSE, CE, CCC, TUV For Digi ConnectPort X4 Family
