DIGI MINICORE RCM6700 SERIES

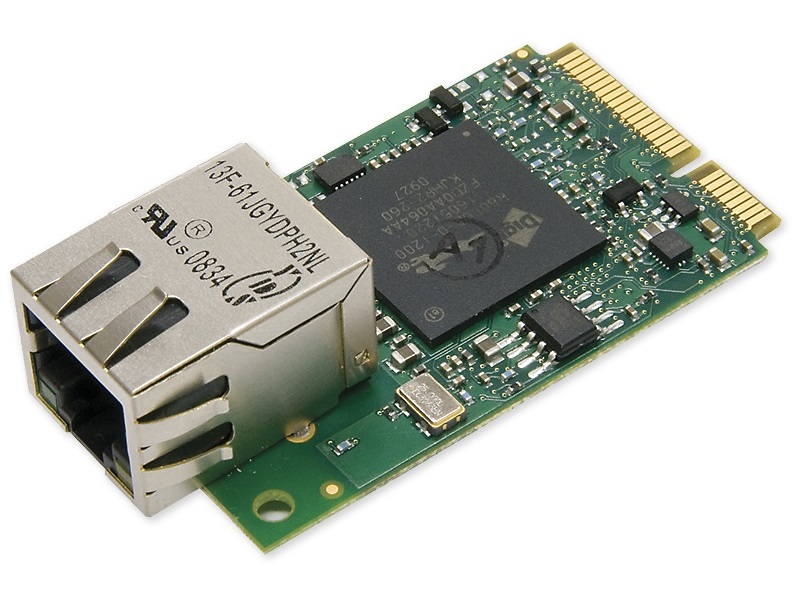

An easily scalable cloud-computing infrastructure, extending remote device control and management with tremendous savings in development cost The ultra-compact MiniCore RCM6700 is ideal for today’s smart energy initiatives as well as other applications that require a cost effective web-enabled device server. The RCM6700 series provides up to 6 serial ports, configurable I/O and control features such as PWM. Furthermore, the RCM 6700 series offers a much greater feature set then comparable device servers, while at a lower cost. The RCM6700 series is fully programmable, taking advantage of processor peripherals. The programming environment, Dynamic C, is an ANSI C compatible development environment that provides a royalty free TCP/IP stack and Wi-Fi support. Various protocol support such as ZigBee, Modbus and BACnet are also available to help reduce development costs and time-to-market. In additon to proccessor and protocol support, Dynamic C supports Digi Remote Manager ® . Digi Remote Manager simplifies device deployment by allowing devices to easily pass through firewalls, eliminating server maintainance and costly on-site visits. Digi Remote Manager supports remote firmware updates and data storage for greater device control and monitoring.

Features

- Rabbit® 6000 running up to 200 MHz - 10/100 Ethernet and pin-compatible with MiniCore 802.11b/g wireless modules - 1 MB of internal RAM for program storage - Up to 4 MB of serial Flash for data logging or web page storage - Digi Remote Manager provides cost-effective cloud computing for remote device management - Seamless migration to chip level design - 5X greater throughput performance

RabbitCore RCM2000

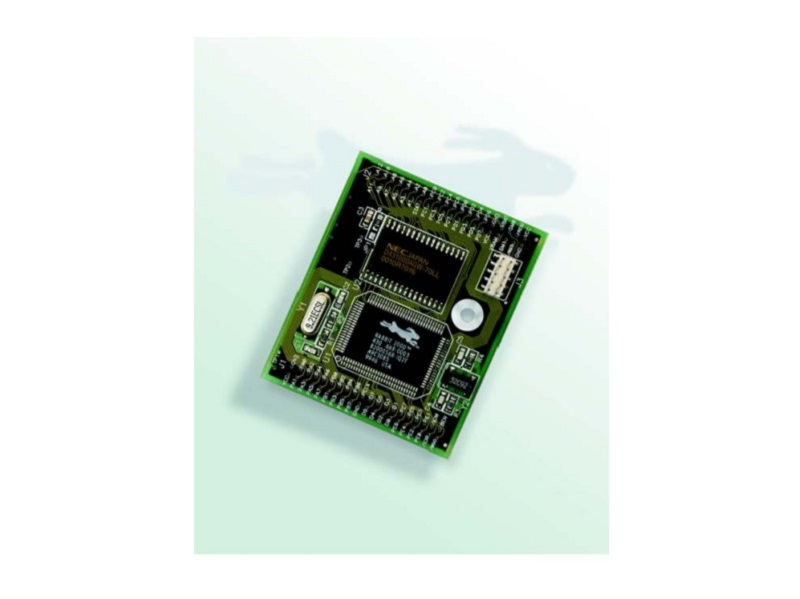

C-Programmable Module The RabbitCore RCM2000 series is a family of microprocessor modules designed to be the heart of embedded control systems, providing an array of I/O and addressing. The RCM2000 is a core module designed to be the heart of your own controller built around the plug-in module. Data processing is done by a Rabbit 2000 microprocessor operating at up to 25.8 MHz (RCM2000 and RCM2010). The RCM2000 has a Rabbit 2000 microprocessor, a static RAM, a flash memory, two quartz crystals (main oscillator and timekeeping), and the circuitry necessary for reset and management of battery backup of the Rabbit 2000’s internal real-time clock and the static RAM. Two 40-pin headers bring out the Rabbit 2000 I/O bus, address lines, data lines, parallel ports, and serial ports. The RCM2000 receives its +5 V power from the user board on which it is mounted. The RCM2000 can interface will all kinds of digital devices through the user board. The RCM2000 Development Kit comes with a Prototyping Board that can be used to demonstrate the operation of the RCM2000 and to prototype new circuits.

Features

- Small size: 1.90" × 2.30" (48.3 mm × 58.4 mm) - Microprocessor: Rabbit 2000 running at 25.8 MHz (RCM2000 and RCM2010) - 40 CMOS-compatible parallel I/O lines grouped in five 8-bit ports (shared with serial ports) - 8 data lines (D0–D7) - 13 address lines (A0–A12) - I/0 read, write, buffer enable - Status, watchdog and clock outputs - Two startup mode inputs for master/slave configuration - External reset input - Reset output - Five 8-bit timers, two 10-bit timers; five timers are cascadable in pairs - 256K flash EPROM, 512K SRAM - Real-time clock - Watchdog supervisor - Provision for customer-supplied backup battery via connections on header J2 - Four CMOS-compatible serial ports: maximum asynchronous baud rate of 806,400 bps, maximum synchronous baud rate of 6.45 Mbps. Two ports are configurable as clocked ports.
