Digi International

Digi International Inc. was founded in 1985, originally offering intelligent multiport serial boards for PCs. Today, Digi® are Machine to Machine (M2M), IoT experts expanding the product lines with RF modules, gateways, and cellular routers to build critical communications infrastructures, plus embedded wireless system on module (SoM) and single-board computer (SBC) offerings for makers of next generation connected products.

Digi® develops reliable products and technologies designed to connect and securely manage local or remote electronic devices over the network or via the Web. Digi® offers a wide range of products for Embedded Systems, Networking, IoT Platforms and IoT Services.

Browse Digi’s Range of Products

«Back to Manufac turers

Contact us for any Networking Product enquiries and for any Embedded Product enquiries.

Featured Products

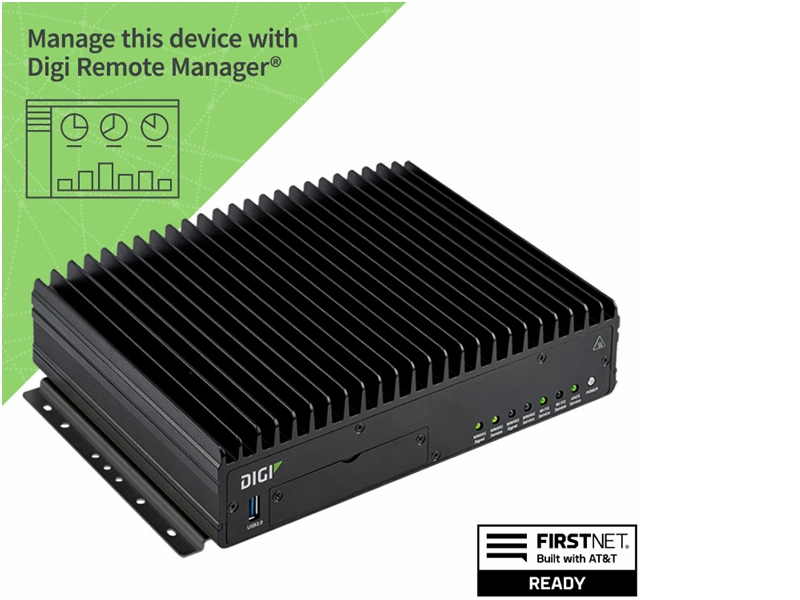

Digi TX64 5G Cellular Router

Quick View

Product SKU: TX64-A161

Digi TX64 5G / LTE-Advanced Pro Cellular Router

High performance cellular router with dual redundant communications for complex transit and transportation systems.

Ideal for challenging transportation and mobile environments, Digi TX64 is a 5G and 4G LTE-Advanced Pro cellular router with true enterprise class routing, security, firewall and integrated VPN. It offers a flexible interface design with an integrated Wi-Fi access point, USB, serial and 4-port Ethernet switch, as well as a variety of configuration options including dead reckoning GNSS and Bluetooth®. Internet access for riders is managed securely and without impact to onboard bus systems. Technologies like 5G NR, EN DC and carrier aggregation deliver up to Gigabit speeds to passengers. Onboard systems retain priority and any remaining bandwidth is made available to Internet traffic. A captive portal and splash page enable term acceptance, targeted messaging and agency branding. Standard HTTP/DNS redirect can be used to block malware and unwanted content through popular third-party service providers or an agency server. FirstNet Ready™ devices provide additional support for critical primary responder communication. Reliable power circuitry supports 9-36 VDC input with ignition sense for direct integration into the vehicle’s power source. Dual cellular and dual Wi-Fi modules provide true segmented traffic flow of private and public data for fare collection, CAD/AVL data, camera log backhaul and passenger Wi-Fi access.

Features

- 5G platform: future-built with powerful quad-core processor - Segmented private and public data communication across 5G NR Sub-6 GHz, 4G LTE-Advanced Pro and 4G LTE-Advanced modems - FirstNet Ready™ for primary responder communication - Wired Gigabit Ethernet (4-port) for onboard systems - Video and vehicle data offload over Wi-Fi 5 4x4 backhaul - Passenger Wi-Fi over Wi-Fi 5 2x2 access point - Digi Remote Manager® platform for easy setup, mass configuration and management

CONTACT US FOR VOLUME PRICING

View Product

Enquire for availability

Make an Enquiry

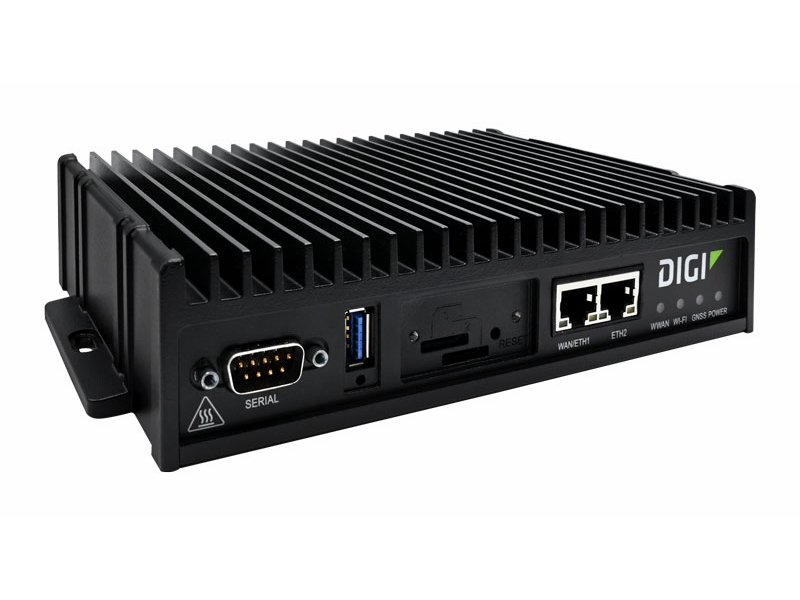

Digi TX40 5G/4GCellular Router

Quick View

Product SKU: TX40-A500-P

Digi TX40 5G Cellular Router

An ideal and purpose-built solution for public safety and service fleets, Digi TX40 breaks down communication silos and seamlessly connects the growing list of equipment in a vehicle into a fast and reliable vehicle area network (VAN). It enables you to digitally transform your fleet with latest generation wireless technology that is affordable, easy-to-deploy and centrally managed with Digi Remote Manager®. Digi TX40 is available in 5G and 4G LTE-Advanced Pro with 3G fallback models that are FirstNet Capable™ and support Verizon Frontline and T-Mobile Connecting Heroes to meet the critical demands of first responders for emergency communications. VIDEO High-resolution, real-time video provides the critical element of situational awareness for dispatchers, command staff and officers arriving on the scene of a public safety incident. Digi TX40 with 5G and Wi-Fi 6 transfers critical information faster, further and more reliably. CONNECTIVITY Digi TX40 connects vehicle equipment such as dash cameras, body cameras, license-plate readers, eTicket systems, and mobile data computers over Gigabit Ethernet, Wi-Fi 6, Bluetooth, USB 3.0, and serial interfaces. And the latest multi-constellation GNSS technology with Untethered Dead Reckoning (UDR) ensures that Dispatch knows the vehicle location, even under the most challenging conditions. INTEROPERABILITY Digi TX40 is ITxPT-compliant to ensure interoperability and seamless integration with other vehicle systems for sharing connectivity, information and services. For example, Digi TX40 can share consistent and accurate location and time information with other systems, reducing complexity, points of failure and cost. SECURITY Cybersecurity is critical in today’s communication systems, and vehicle area networks are no different. Digi TX40 meets the U.S. government cybersecurity FIPS 140-2 standard and supports the Digi TrustFence® security framework to ensure it is secure on day one and stays secure throughout its life. The available Digi SAFE solution, powered by Radio IP, enables IT staff from multiple agencies to securely share one system within a single operating platform. The highly resilient application and session persistence helps ensure constant connectivity, enabling greater support for field personnel with mobile encryption and reliable data access, and keeping officers and citizens safer, while minimizing response times.

Features

- 5G and 4G LTE-Advanced Pro Cat 20 - Dual Ethernet - Wi-Fi 6 - USB - RS-232 - GNSS

CONTACT US FOR VOLUME PRICING

View Product

Enquire for availability

Make an Enquiry

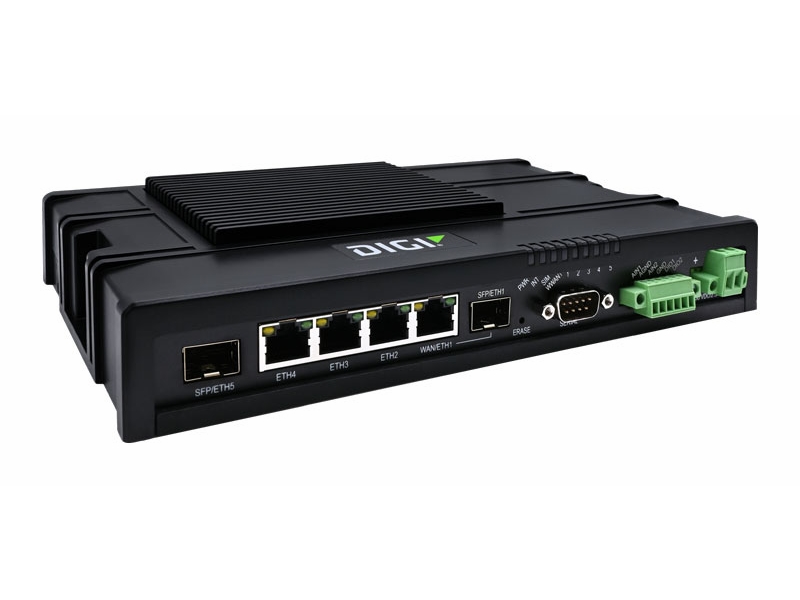

Digi IX40 5G Edge Computing Industrial IoT Solution

Quick View

Product SKU: IX40-05

5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0

Digi IX40 is a 5G edge computing industrial IoT router solution, integrated with Digi Remote Manager (Digi RM) to empower rapid processing, analysis, and integration of industrial asset data.

Purpose-built for Industry 4.0, Digi IX40 supports the 5G connectivity and edge intelligence needed to enable numerous use cases ranging from predictive maintenance and asset monitoring to machine learning and advanced robotics. It seamlessly connects multiple machines, whether wired or wireless, in the most demanding environments, optimizing integration of cloud-delivered operational technology (OT) services with information technology (IT) to streamline complex operations and scale IT infrastructure. With its all-in-one design, strong computing power and integrated memory, Digi IX40 offers substantial capabilities for real-time data processing, edge computing and advanced precision while reducing complexity and total cost of ownership. Digi Containers facilitate potent and cost-effective applications, providing additional flexibility and scalability for Industry 4.0, energy, smart cities and other uses. The Digi IX40 solution offers FirstNet Capable™ models designed to meet the demands of critical applications where reliability is essential for industrial use cases and emergency response. Additional use cases for Digi IX40 include manufacturing process automation, precision monitoring and control, industrial automation, utilities and traffic management. Gain critical insights and manage your network with Digi RM — the cloud-based command center for your deployment. Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

Features

5G edge computing industrial IoT cellular router solution, purpose-built for Industry 4.0

- Global 5G and LTE support and certification on major carrier networks around the world - Digi Containers to enable powerful, cost-efficient applications - Integrated edge computing capabilities for hosting containerized applications and custom solutions - Ethernet, SFP, serial, I/O and Modbus bridging - Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots - GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo - License-free enterprise software: VPN, firewall, logging and authentication - Digi Remote Manager® platform for easy setup, mass configuration and management - Rugged enclosure with options for DIN rail or shelf mounting - Digi WAN Bonding for 5G/LTE WAN aggregation and immediate failover

CONTACT US FOR VOLUME PRICING

View Product

Enquire for availability

Make an Enquiry

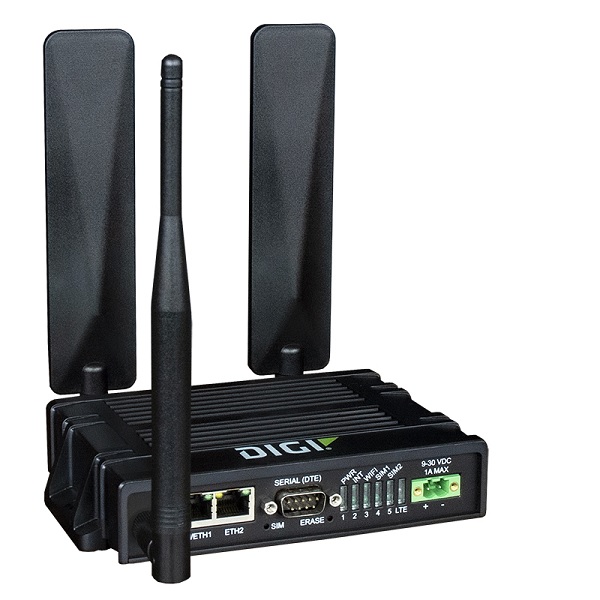

Digi IX20 4G LTE Cellular Router

Quick View

Product SKU: IX20-WAG4

Digi IX20 Industrial Cellular Router

The Digi IX20 is a cloud managed cellular router that provides primary and backup WWAN connectivity over software selectable multi-carrier LTE. It offers advanced security features, dual SIM redundancy and management capabilities that make it suitable for PCI or NERC-CIP compliant applications. It is a versatile and purpose-built for industrial infrastructure, digital signage, retail kiosks, service terminals and other critical assets with a need for secure transactions. The Digi IX20 can be managed with Digi Remote Manager® - a web-based device management platform that allows easy setup, mass configuration and maintenance for thousands of remote devices.

Features

- Compact and economical cellular routing platform with industrial feature set - Redundant connectivity with dual SIMs and Digi SureLink® - Global bands and single part number to simplify global distribution, deployment and management - Built-in Digi TrustFence® for device security, device identity and data privacy - Digi Remote Manager® software for easy setup, mass configuration and management - Dual Ethernet ports and single serial (RS-232) port

Specifications

CERTIFICATIONS - Visit https://www.digi.com/resources/certifications for latest certifications LTE (G4) WITH DIGI CORE® PLUG-IN LTE MODEM 1002-CMG4 LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41 3G: B1, B2, B4, B5, B6, B8, B19 2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz CONNECTORS (2) 50 O SMA (center pin: female) SIM SLOTS (2) Mini-SIM (2FF) SIM SECURITY Secured in cellular module WI-FI MODULE 1 x 1 SISO dual-band 802.11a/b/g/n/ac (2.4 GHz / 5 GHz) AUTHENTICATION TACACS+, Enterprise RADIUS MODES Client mode and access point mode simultaneously CLIENTS Maximum 10 clients (access point mode: regardless of combination of clients and access points) ACCESS POINTS Maximum 2 access points (access point mode: regardless of combination of clients and access points) SECURITY WPA/WPA-2 personal, WPA/WPA-2 enterprise CONNECTORS (1) 50 O SMA (center pin: male) SOFTWARE AND MANAGEMENT REMOTE MANAGEMENT Digi Remote Manager; SNMP v2/v3 (user installed/managed) LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Telnet, SSH) MANAGEMENT / TROUBLESHOOTING TOOLS FTP client, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP client; NTP/SNTP; Nagios, Intelliflow, IPerf, DynamicDNS, Ping, Traceroute MEMORY 256 MB RAM, 256 MB flash ETHERNET PORTS (2) RJ-45; 10/100 Mbps (auto-sensing) SERIAL PORTS (1) DB9M; RS-232 DTE; Signal support TXD, RXD, CTS, DTR, DCD, flow control software (XON/OFF), hardware supported (CTS/RTS) PHYSICAL DIMENSIONS (L x W x H) 107 mm x 162 mm x 35 mm (4.21 in x 6.38 in x 1.38 in) WEIGHT 0.65 kg (1.4 lb) STATUS LEDs Power, Internet, Wi-Fi, SIM 1, SIM 2, signal strength (5), LTE ENCLOSURE Glass-filled polyphenylene sulphide (PPS) / IP30 POWER REQUIREMENTS POWER INPUT 9 - 30 VDC, 1.0 A maximum POWER CONSUMPTION 2.5 W typical (idle); 6 W typical (peak Tx/Rx) ENVIRONMENTAL OPERATING TEMPERATURE Models with Wi-Fi: -20° C to 70° C (-4° F to 158° F); device performance may be impacted above 50° C (122° F) Models without Wi-Fi: -40° C to 70° C (-40° F to 158° F); device performance may be impacted above 50° C (122° F) RELATIVE HUMIDITY 5% to 95% (non-condensing) APPROVALS CELLULAR Visit https://www.digi.com/resources/certifications for latest cellular certifications SAFETY IEC62368-1, CB, EN62311 ENVIRONMENTAL ROHS3 MISSIONS / IMMUNITY FCC Part 15, Subpart B, Class A; CE, RCM; CAN ICES-3(B)/NMB-3(B) PRODUCT WARRANTY 3-years

CONTACT US FOR VOLUME PRICING

View Product

Enquire for availability

Make an Enquiry

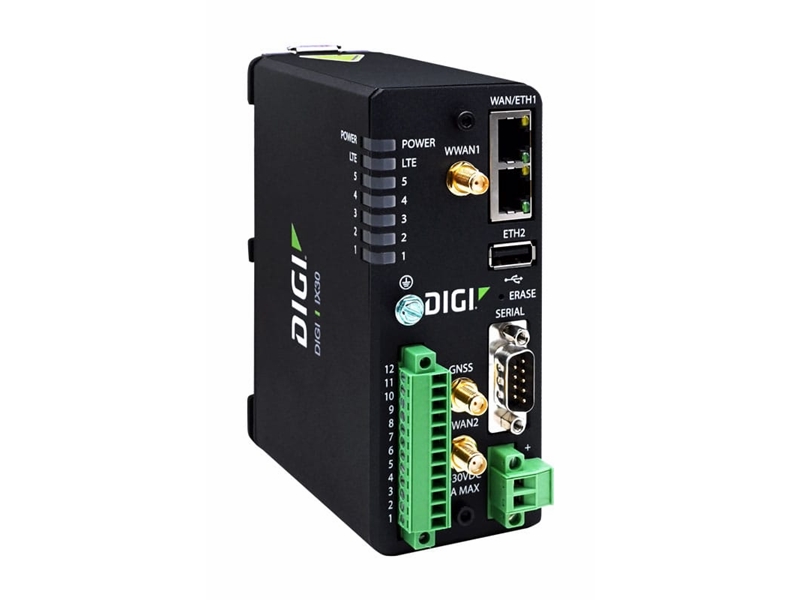

Digi IX30 Industrial Cellular Router

Quick View

Product SKU: IX30-00G4

Digi IX30 - LTE Cat 4 Global, 3G/2G fallback, dual Ethernet, RS-232/422/485, GNSS

Intelligent 4G router designed for critical infrastructure and industrial applications Digi IX30 is an intelligent 4G LTE router designed for optimal performance and reliability across a wide range of critical infrastructure and industrial applications. This complete solution is fully integrated with software and security, providing a secure, reliable connection to industrial controllers, process automation equipment and smart grid assets on third party sites or remote locations. Software-defined, multi-carrier networking and global LTE and HSPA+ options make it easy to get connected. This drop-in connectivity gives operators a way to reduce downtime and service calls, and also increase revenue by bringing distributed sites online faster. The Digi IX30 router offers FirstNet Capable™ models designed to meet the demands of first responders for critical communications. Additional industrial use case applications include building and process automation controllers, IP cameras and access controllers, remote data loggers, flow meters, sensing equipment, telco infrastructure, and traffic and obstruction lighting. Gain critical insights into your deployed devices and manage your network with Digi Remote Manager (Digi RM) — the command center for your deployment. Digi RM is a cloud-based solution that facilitates easy setup, mass configuration, maintenance and visibility into the health of your network, whether you deploy dozens or thousands of devices. In the event of an interruption to your primary network connection, Digi RM also provides secure terminal access for out-of-band management of edge devices via serial port and command-line interface.

Features

Cellular connectivity: LTE Cat 4 Global - LTE Cat 4 - FDD: B1, B2, B3, B4, B5, B7, B12, B13, B18, B19, B20, B25, B26, B28; TDD: B38, B39, B40, B41; - WCDMA: B1, B2, B4, B5, B6, B8, B19; - GSM: B2, B3, B5, B8; - GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS - Connectors: (3) 50 O SMA (2x cellular, 1x GNSS); center pin: female - SIM slots: (2) Mini-SIM (2FF) - SIM security: Secured in cellular module - GNSS: Protocol NMEA 0183 V3.0; Acquisition Time Hot Start 1 s; Warm Start 29 s; Cold Start 32 s; Accuracy Horizontal: < 2 m (50%), < 5 m (90%); - Altitude: < 4 m (50%), < 8 m (90%); Velocity: < 0.2 m/s Software and management: - Remote management: Digi Remote Manager®, SNMP v1/v2c/v3 (user installed/managed), SMS - Local management: Web UI (HTTP/HTTPS); CLI (Telnet, SSH, Serial) - Management / troubleshooting tools: FTP, SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog and SMTP; NTP/SNTP Ethernet: - Ports: (2) RJ-45; 10/100 Mbps (auto-sensing) Serial: - (1) DB-9 DTE - RS-232/422/285 - Signal support: TXD, RXD, CTS, DTR, DCD, DSR, RI - Flow control: software (XON/OFF), hardware supported I/O: - Connector: 12-pin screw down terminal block - Digital: 0-30 VDC, 200 mA max.; (4) I/O, software-selectable; pulse counter input - Analog: (4) analog I/O; 4-20 mA or 0-10 V, software-selectable; 12-bit resolution USB: - Ports: (1) USB 2.0 Type A; 5 V 500 mA max Physical: - Dimensions (L x W x H): 12.8 cm x 10 cm x 5.2 cm (5.04 in x 3.94 in x 2.05 in) - Weight: 0.5 kg (1.1 lb) - Status LEDs: Signal Strength (5), LTE, Power - Enclosure/Rating: Aluminum / IP30 - Mounting: DIN rail mount Power requirements: - Power input: 9 – 30 VDC, 18 W min power source required - Power connector: Screw down removable terminal block - Power consumption: W typical (idle); 12 W typical (peak Tx/Rx) - Environmental: - Hazardous (Class 1 Div 2): Yes - Operating temperature: -34° C to 74° C (-29° F to 165° F); reduced cellular performance may occur above 60° C (140° F) - Storage temperature: -40° C to 85° C (-40° F to 185° F) - Ethernet isolation: 1.5 kV RMS - Serial port protection (ESD): 15 kV - Relative humidity: 5% to 95% (non-condensing) Approvals: - Cellular (IX30-00G4): CE, RED, UKCA; visit www.digi.com/resources/certifications for latest cellular certifications - Safety: Hazardous locations: ANSI/ISA-12.12.01-2015, CAN/CSA C22.2 NO.213-15; Ordinary locations: UL 62368-1, 2nd Edition, 2014-10-14; UL 62368: 2014, 2nd Edition; ATEX standards: Protection method II 3 G Ex nA IIC T4 Gc; EN 60079-0:2012+A11:2013, EN 60079-15:2010, DEMKO 15 ATEX 1574X Rev. 1 - IECEX standards: US/UL/ExTR17.0077/00 - Emissions / Immunity: CE, RED, FCC Part 15 Subpart B, ICES-003, AS/NZS CISPR 322 - Environmental: RoHS3 Product warranty: 3-year* Available accessories: Accessories not included; view available accessories - IX30 Accessory Kit - PSU, antennas, Cat 6 Ethernet cable, GPS antenna: 76002113 (recommended) - Power supply (required, choose industrial extended temperature or commercial) - Power supply - 18 VDC, 1 A, wall mount level VI, industrial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002104 - Power supply - 18 VDC, 1 A, wall mount level VI, commercial temperature, changeable plug tips, 2-pin combicon screw terminal plug: 76002117 - Antenna - 5G/LTE 600 MHz - 6 GHz, swivel, black: 76002114 (recommended / optional) - Antenna base - SMA, 1 m, RG174: 76000954 (recommended / optional) - Cable - UTP, Cat 6, 2 m (6 ft), black, flat patch cable: 76002106 (recommended / optional)

CONTACT US FOR VOLUME PRICING

View Product

Enquire for availability

Make an Enquiry

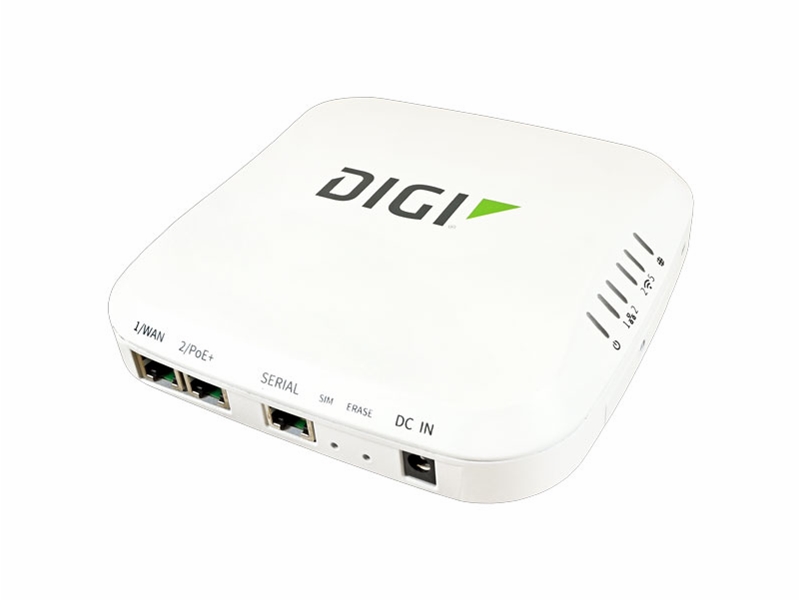

Digi EX50 5G Cellular Router

Quick View

Product SKU: EX50-WXS6-GLB

Digi EX50 - Global, 5G NR Sub-6 GHz with 4G/3G fallback, Wi-Fi 6 2x2 MIMO DBS, dual 2.5 GbE, RS-232, with accessories

Business has forever changed with millions of employees working remotely. The Digi EX50 5G cellular router with 5G/4G dual connectivity provides your business with a fast, secure and resilient enterprise-grade network that changes the work-from-anywhere experience for good. Digi EX50 is an ideal choice for your business as you adapt to the new normal. The small form factor of Digi EX50 makes it the 5G go-to enterprise solution where the work is happening: at the headquarters for backup connectivity, at the branch for cost-optimized primary connectivity, or at the IT-managed home office for secure, all-in-one connectivity with Wi-Fi. Part of Digi enterprise solutions, this router comes with industry-leading software, including Digi Accelerated Linux (DAL OS), Digi TrustFence® security framework, and the Digi Remote Manager® configuration and management platform. These tools deliver security, reliability and system-wide management of your entire infrastructure. Dual-SIM slots provide carrier flexibility and wireless failover, and with 4G LTE and 3G fallback, you're covered in areas where 5G is not yet deployed. The latest generation Wi-Fi 6 radios in the Digi EX50 router operate simultaneously for higher speed, capacity, quality of service and range than previous Wi-Fi products. Dual 2.5 Gigabit Ethernet ports break the Gigabit barrier and deliver 5G speeds for future-ready networks. Digi EX50 supports indoor use-cases with an extended operating temperature range, such as smart factories, warehouses, construction sites or infrastructure sheds. An available serial port with Cisco straight-through pinout enables secure out-of-band (OOB) management of other on-site equipment. To simplify installation, Digi EX50 can be directly powered by an active PoE+ switch or a DC IN barrel connector as the primary or backup power source for redundancy.

Features

5G go-to enterprise solution for primary or backup wireless connectivity

- Future-proof and ready for new use cases such as 5G network slicing, SD-WAN, 4K/8K cameras and AR/VR - High-speed 5G NR and 4G LTE-Advanced Pro Cat 20 dual connectivity cellular radio - Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet - Extended operating temperature range for wider use-cases - Standards-based Power over Ethernet simplifies installation - Multiple mounting options and accessories - Serial port for remote, out-of-band management - Securely deploy, monitor and control devices with Digi Remote Manager® - Full-featured enterprise and industrial cellular routing platform

CONTACT US FOR VOLUME PRICING

View Product

In stock

Make an Enquiry

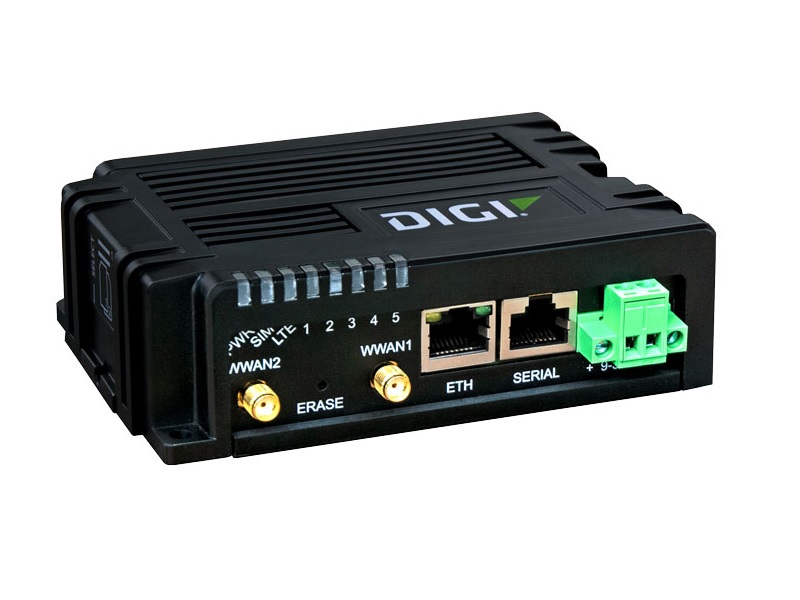

Digi IX10 4G LTE Cellular Router

Quick View

Product SKU: IX10-00G4

Digi IX10 - LTE Cat 4 Global, Cellular Router with 1 x Ethernet, and RS-232/485

Rugged, reliable, cost-effective connectivity for critical industrial applications Digi IX10 is a full-featured cellular router built for trouble-free reliability over a long service life. Its flexible power and connectivity options make it a versatile and cost-effective choice for light industrial, digital signage, ATMs, lottery terminals, kiosks and other unattended retail applications that need to provide secure transactions. Digi IX10 is a full-featured cellular router built for troublefree reliability over a long service life. Its flexible power and connectivity options make it a versatile and costeffective choice for industrial, digital signage, ATMs, lottery terminals, kiosks and other unattended retail applications that need to provide secure transactions. Digi IX10 features an RJ-45 serial port supporting both RS-232 and RS-485, as well as dual SIMs for redundant connection. It can operate independently on LTE networks, with features to assist in network control and management, such as VLAN support, load balancing between cellular and Ethernet WANs, dual APNs and configurable APN search. Digi IX10 also offers low-touch and no-touch provisioning.

Features

FEATURES AND BENEFITS – Compact and economical cellular routing platform with industrial feature set. – Redundant connectivity with dual SIMs and Digi SureLink®. – Global bands and single part number to simplify global distribution, deployment and management. – Built-in Digi TrustFence® for device security, device identity and data privacy. – Digi Remote Manager platform for easy setup, mass configuration and out-of-band management. – Ethernet port and single RJ-45 serial port RS-232/485

CONTACT US FOR VOLUME PRICING

View Product

In stock

Make an Enquiry

Digi AnywhereUSB Plus

Quick View

Product SKU: AW02-G300-P

Connect USB peripheral devices anywhere on a Local Area Network (LAN) without a locally-attached host computer A network USB hub is a USB-over-IP device that connects USB assets such as printers, scanners, and POS devices, without requiring the host computer to be in close proximity. Network USB hubs allow computers to be centralized, virtualized, positioned in racks, or placed in lower traffic locations, which improves data security, streamlines configuration, testing and management, and reduces the amount of equipment in a work area.

Features

Network-attached USB hubs easily connect USB peripheral devices to a PC from remote or virtual hosts Ideal for connecting USB devices over the network in virtualized environments such as VMware® AnywhereUSB 24 Plus is rack mountable with two power supplies and Ethernet connections for failover redundancy Access and monitor USB and serial devices over TCP/IP connection Supports multi-host connectivity for each USB port or group independently Supports Digi Remote Manager® cloud-based management platform to deploy, monitor, manage and maintain a suite of peripherals and devices

Specifications

Specifications	AnywhereUSB® 2 Plus	AnywhereUSB® 8 Plus	AnywhereUSB® 24 Plus
CELLULAR
MODULE SUPPORT	-	(1) Digi CORE modem compliant socket	(1) Digi CORE modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT	Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT	WebUI (HTTP/HTTPS); CLI (SSH)	WebUI (HTTP/HTTPS); CLI (Console, SSH)	WebUI (HTTP/HTTPS); CLI (Console, SSH)
OPERATING SYSTEMS	Windows 7, Windows 8.1, Windows 10, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
PROTOCOLS	Supports multi-host connectivity for each USB port or group independently
MEMORY	512MB RAM, 4GB flash (eMMC)	2GB RAM, 4GB flash (eMMC)	2GB RAM, 4GB flash (eMMC)
NETWORK
ETHERNET	(1) RJ-45; 10/100/1000 Mbps	(1) RJ-45; 10M/100M/1G/10G Ethernet	(2) RJ-45; 10M/100M/1G/10G Ethernet
SFP+	-	(1) SFP+ socket	(2) SFP+ sockets
CONNECTORS
CONSOLE	-	(1) DB09M; RS-232 DTE
USB	(2) USB 3.1 Gen 1 Type A	(8) USB 3.1 Gen 1 Type A	(24) USB 3.1 Gen 1 Type A
PHYSICAL
DIMENSIONS (L X W X H)	4.6 in x 2.9 in x 1.2 in (118 mm x 74 mm x 30 mm)	10 in x 6 in x 1.75 in (260mm x 160 mm x 44.45 mm)	17.75 in x 10 in x 1.75 in (450.85 mm x 255 mm x 44.45 mm)
WEIGHT	0.84 lb (0.38 kg)	3.48 lb (1.58 kg)	10.36 lb (4.7 kg)
STATUS LEDS	(2) Ethernet, 2 (x1) USB, power	(2) Ethernet, (2) SFP+ 8 (x1 )USB, power, fan, user, (3) future Wi-Fi/WWAN	2 (x2) Ethernet, 2 (x2) SFP+, 24 (x1) USB, 2 (x1)PSU, 2 (x1) fan, user, (3) future Wi-fi/WWAN
POWER REQUIREMENTS
POWER INPUT	5 V, 5 A max	12 V DC, 12 A max	100-240 V 3 A max (2 supplies for redundancy)
POWER CONSUMPTION	25 watts max	98.5 watts max	157.7 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE	0 °C to 40 °C (32 °F to 104 °F)	0 °C to 55 °C (32 °F to 131 °F)	0 °C to 55 °C (32 °F to 131 °F)
RELATIVE HUMIDITY	5% to 95% (non-condensing)	5% to 95% (non-condensing)	5% to 95% (non-condensing)
APPROVALS
BLUETOOTH	-	Bluetooth BLE 4.2
SAFETY	UL 60950, CSA 22.2 No. 60950, EN60950, EN62368	UL/EN60950, UL/EN62368 and CSA 22.2	UL 60950, CSA 22.2 No. 60950, EN60950, EN62368
EMISSIONS/IMMUNITY	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032	CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY	5-year
