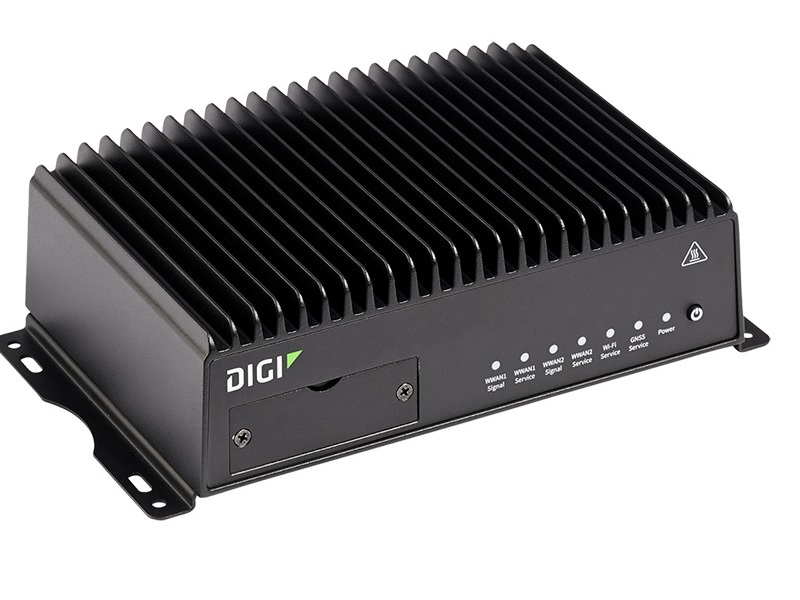

Digi WR54/WR64 Cellular Router
Digi WR54/WR64 Cellular Router
XProduct SKU: WR54-A106
Rugged and secure cellular router for mission critical industrial and transportation applications, including FirstNet Ready™ models for public safety networks
The versatility and performance of Digi WR54 routers make them ideal for mission critical applications requiring continuous connectivity, field longevity and edge computing. FirstNet Ready™ Digi WR54 provides secure routing and gateway functionality across wired and wireless communication networks. Local private subnets are bridged across public networks to safeguard privacy and integrity.Features
- Model: Digi TransPort WR54 - Base Hardware: (4) RJ-45 Ethernet, (1) DB-9 RS-232 - Cellular Network: Single cellular module with global LTE coverage - LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B28, B29, B30, B66 - LTE TDD: B38, B40, B41 - 3G HSPA: B1, B2, B4, B5, B8 - Transfer rate (max): 600 Mbps down, 75 Mbps up (Cat 11) - Wi-Fi: Single 2x2 MIMO 2.4/5 GHz 802.11 a/b/g/n/ac - Power Connector: 3-pin Terminal Block with Ignition Sense - Accessories not included with this product: See additional accessory options belowCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry
Digi Z1201 Multifunction I/O Controller
Digi Z1201 Multifunction I/O Controller
XProduct SKU: CTK-Z1201
Digi Z1201 I/O Module
Giving you a greater degree of scalability for remote I/O control and monitoring applications
Avoid the extra cost of an additional controller and effort of maintaining multiple applications. Start with a Digi Z45 Industrial Controller and add I/O by connecting Digi Z1201 expansion modules for a solution tailored to your system.
With support for various I/O combinations — relays, digital, analog, pulse, inputs and outputs — the expandable Digi Z1201 I/O module provides monitoring and controlling for use cases requiring unique I/O combinations. On-device logic is supported from anywhere by Digi’s Z45 Industrial Controllers. Our controllers perform simple to medium complexity control logic, similar to that of a Programmable Logic Controller (PLC). Unlike a PLC, our controllers are designed for remote, distributed I/O applications in a single end-to-end solution. Data communication between Z45 Industrial Controllers and Z1201 modules is provided by a 2-wire RS-485 connection with addressing and individual pin function established by program control using our Automation Control Application. Digi Z1201 is a 16-pin, multifunction I/O module consisting of 8 collector outputs, and 8 multifunction inputs, each of which can be configured under software control for analog, digital or pulse operation. The module can be daisy-chained for expansion beyond a single I/O module.Features
SPECIFICATIONS
GENERAL FEATURES - RS-485, 2-wire interface - 8 open collector outputs, 30 VDC max - 8 multi-mode inputs, 30 VDC max - Pulse counting - Analog inputs - Digital outputs INPUTS - Maximum input voltage: 30 VDC - Input logic, Low /= 4 - Sample rate: 512 Hz CONFIGURABLE I/O: DIGITAL OUTPUTS - Open collector output rating: 30 V 350 mA single output, 250 mA with all outputs on - Max update frequency: 60 Hz - Pulse width modulation: 7.8 KHz, 8-bit resolution CONFIGURABLE I/O: ANALOG INPUTS - Measurable range: 0-5 VDC - Read frequency: 20 Hz - Analog input A/D conversion: 12-bit with 10 mV CONFIGURABLE I/O: PULSE INPUTS - Max pulse width: 3 msec - Max count stored between reads: 32,767 CONTROL INTERFACE - RS-485 2-wire - Protocol: Proprietary Automation Control POWER Input: - 9-24 VDC (external source) - Consumption: 100 mA (excluding active inputs) ENVIRONMENTAL - Operating temperature: -30 °C to 70 °C (-22 °F to 158 °F) - Humidity: 90% non-condensing MOUNTING - 35 mm DIN DIMENSIONS - 10.719 x 6.02 x 3.33 cm (4.22 x 2.37 x 1.312 in), excluding terminal block and DIN clip WEIGHT - 0.29 kg (0.63 lb), without power adapter WARRANTY - 1-year standard warrantyCONTACT US FOR VOLUME PRICING
Enquire for availability
Make an Enquiry

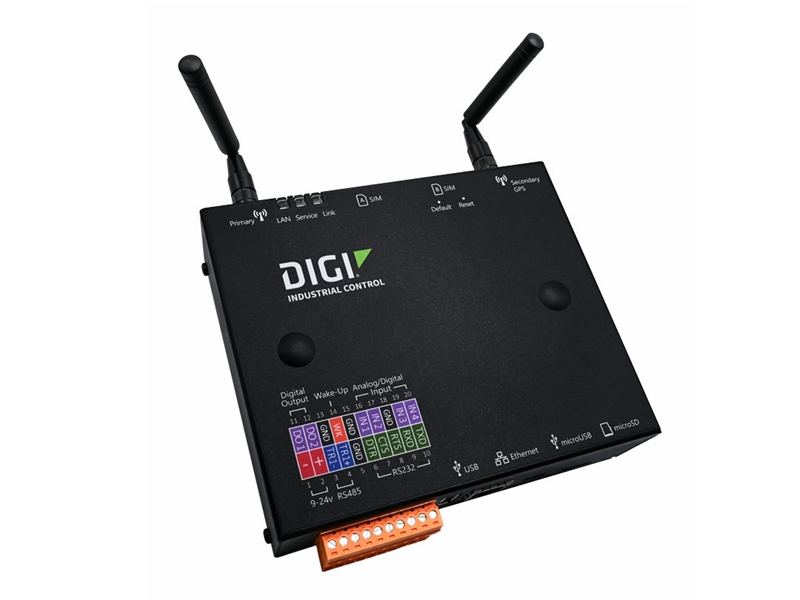

Digi Z45 Industrial Controller
Digi Z45 Industrial Controller
XProduct SKU: CTK-Z4550A2M-P
Digi Z45 Industrial Controller with Cellular
The complete SCADA system in a box with sophisticated PLC-like automation control on the same platform that provides communications.
Includes Skycloud + Automation License
This single, rugged, compact box combines the capabilities of programmable logic controllers (PLCs) and SCADA systems into one integrated toolset that allows rapid, end-to-end deployment for all industrial monitoring and control requirements. Coupled with an on-board, web-based Automation Control Application, the Z45 brings alarms, reports and control to your web browser, mobile device, or existing SCADA infrastructure without the need for custom software development. - Integrated interfaces for analog, digital, hex and pulse information processing - Modbus client and server configurations - Built-in digital and analog input, digital output - Networks connectivity over USB, Ethernet and serial interfaces - On-board dashboard display with gauges, indicators and charts - Self-provisioning devices report to SkyCloud for complete visibility of assets - LTE coverage on all bands for North American carriers with 3G HSPA fallback - Automatic carrier provisioning and dual-SIM failover supportFeatures
Z45 Industrial Controller
Integrated interfaces for analog, digital, hex and pulse information processingCellular technology:
LTE bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41; 3G: B1, B2, B3, B4, B5, B8 Multi-carrier, auto-configuration Dual-SIM (2FF) DL MIMO/Rx diversity support (1) 50 O SMA (center pin: male)Approvals:
FCC, IC, CE, PTCRB Verizon, AT&T, T-Mobile, Sprint, US Cellular, Bell, Rogers, Telus; visit www.digi.com/resources/certifications for latest cellular certificationsPosition location:
GPS, GLONASSHost interfaces:
10/100 Ethernet RJ-45 (1) RS-232 (terminal block) (1) RS-485 (terminal block) (1) Full-speed USB (Type A) (1) High-speed micro-USB OTG Input / output:
(4) User configurable, digital/analog inputs (0-5 V / 4-20 mA) (2) Digital outputs (expandable with Z1201 I/O Module)Memory:
128 MB DDR2 RAM 256 MB SLC NAND flash (1) MicroSD Slot (externally accessible)Platform:
Linux 4.xx operating system Atmel ARM9 processor Web Manager 2.0 SkyCloud services Automation applicationPower:
9-24 VDC input, 190 mA consumption (typical - Ethernet not connected, varies with signal level)Operating temperature:
-30° to 70° C (-22° to 158° F)Dimensions:
13.92 x 11.99 x 3.68 cm (5.48 x 4.72 x 1.45 in)Warranty:
3-year standard warrantyAvailable accessories:
Multifunction I/O Controller - CTK-Z1201S Antenna - external, MIMO 2 x 4G LTE / 3G / 2G, GPS, 1 m cable, low-profile, SMA — 76002123 Antenna - pentaband, monopole 4G / 3G / 2G, GPS, swivel base SMA, hinged — 76002125 Antenna - multiband, 4G / 3G / 2G, GPS, flex/strip, SMA — 76002126 Power supply - wall; US 100-240 VAC / 50-60 Hz, 12 VDC, 1 A 0.25 in S/T — 76002127 Power supply - DIN mount; out: 40 W, 24 VDC 1.7 A; in: 85~264 VAC — 76002128 Power supply, DIN mount; out: 15 W, 24 VDC 0.6 A; in: 100-240 VAC 50/60 hz — 76002129 Mount kit - DIN rail SKU 76002130CONTACT US FOR VOLUME PRICING
