RabbitCore RCM2000

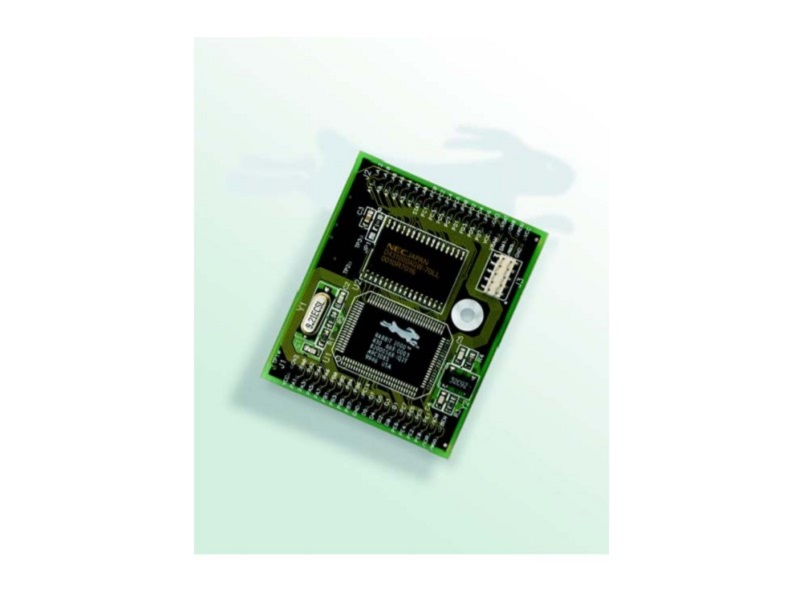

C-Programmable Module The RabbitCore RCM2000 series is a family of microprocessor modules designed to be the heart of embedded control systems, providing an array of I/O and addressing. The RCM2000 is a core module designed to be the heart of your own controller built around the plug-in module. Data processing is done by a Rabbit 2000 microprocessor operating at up to 25.8 MHz (RCM2000 and RCM2010). The RCM2000 has a Rabbit 2000 microprocessor, a static RAM, a flash memory, two quartz crystals (main oscillator and timekeeping), and the circuitry necessary for reset and management of battery backup of the Rabbit 2000’s internal real-time clock and the static RAM. Two 40-pin headers bring out the Rabbit 2000 I/O bus, address lines, data lines, parallel ports, and serial ports. The RCM2000 receives its +5 V power from the user board on which it is mounted. The RCM2000 can interface will all kinds of digital devices through the user board. The RCM2000 Development Kit comes with a Prototyping Board that can be used to demonstrate the operation of the RCM2000 and to prototype new circuits.

Features

- Small size: 1.90" × 2.30" (48.3 mm × 58.4 mm) - Microprocessor: Rabbit 2000 running at 25.8 MHz (RCM2000 and RCM2010) - 40 CMOS-compatible parallel I/O lines grouped in five 8-bit ports (shared with serial ports) - 8 data lines (D0–D7) - 13 address lines (A0–A12) - I/0 read, write, buffer enable - Status, watchdog and clock outputs - Two startup mode inputs for master/slave configuration - External reset input - Reset output - Five 8-bit timers, two 10-bit timers; five timers are cascadable in pairs - 256K flash EPROM, 512K SRAM - Real-time clock - Watchdog supervisor - Provision for customer-supplied backup battery via connections on header J2 - Four CMOS-compatible serial ports: maximum asynchronous baud rate of 806,400 bps, maximum synchronous baud rate of 6.45 Mbps. Two ports are configurable as clocked ports.
